Home >> Honda >> 2010 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 243 - C753 (Junction Connector) Connector View (4-door: Power Mirror Defoggers)

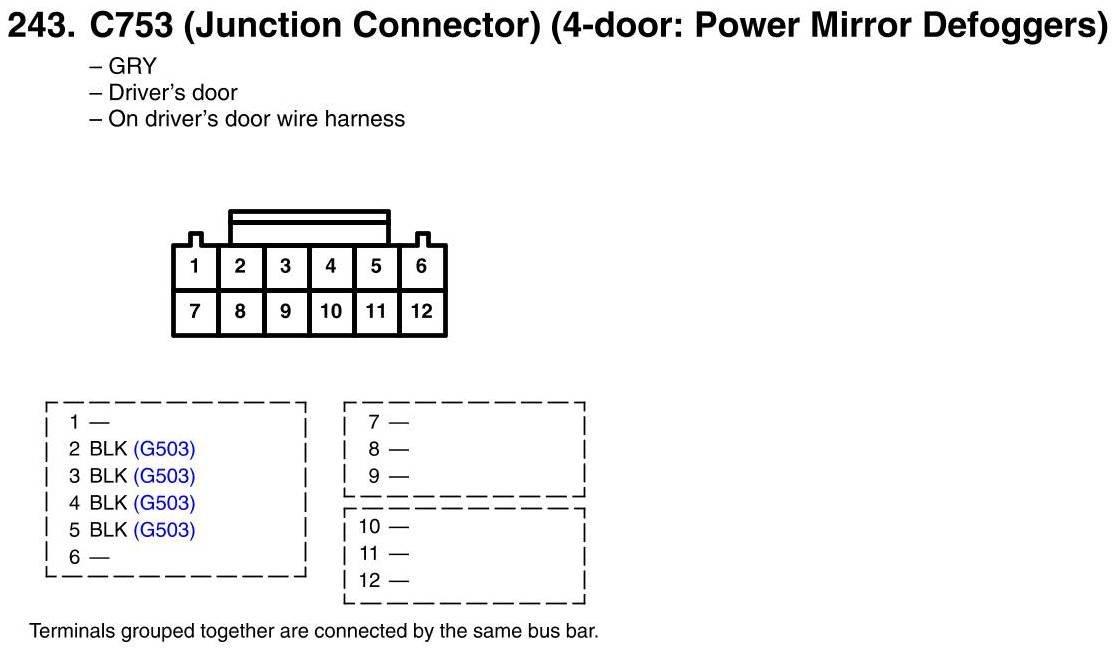

View 243 - C753 (Junction Connector) Connector View (4-door: Power Mirror Defoggers)
