Home >> Honda >> 2010 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 202 - Driver's Power Window Motor Connector View

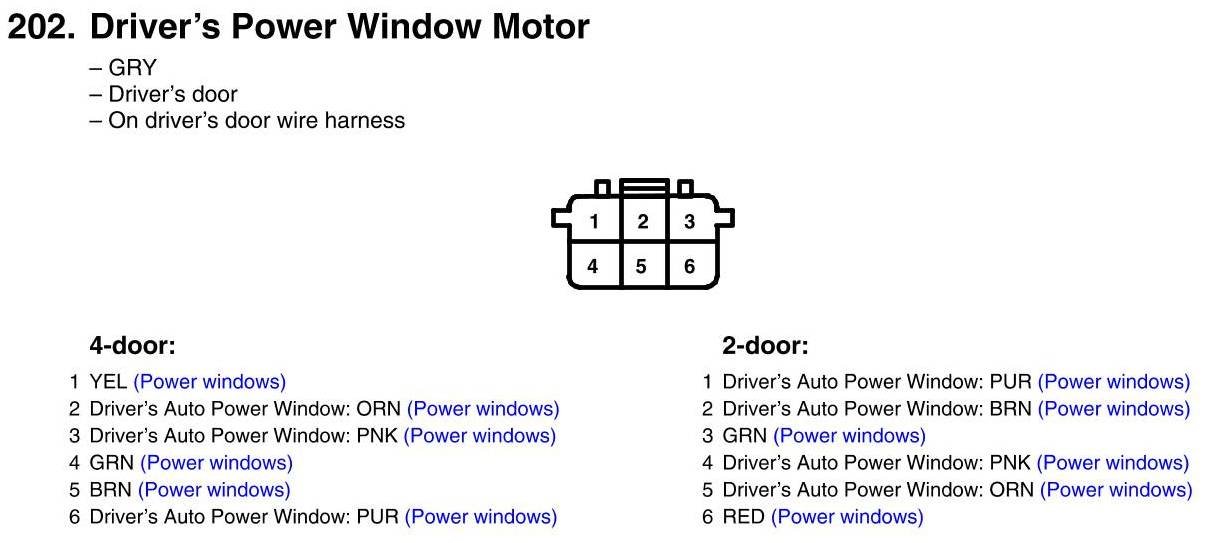

View 202 - Driver's Power Window Motor Connector View
