Home >> Honda >> 2010 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 133 - CMP Sensor Connector View (Si)

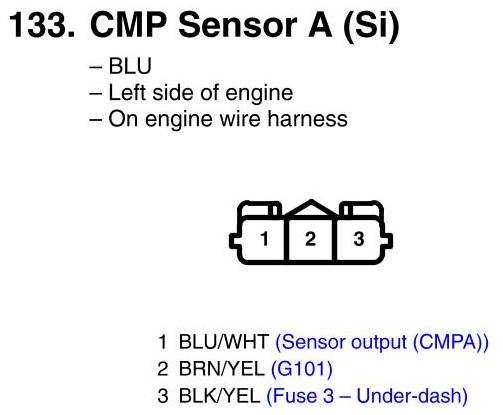

View 133 - CMP Sensor Connector View (Si)
