A-Pillar Corner Trim Replacement (2-Door)

A-Pillar Corner Trim Replacement

2-door

NOTE: Take care not to scratch the body or the related parts.

1. Open the front door.

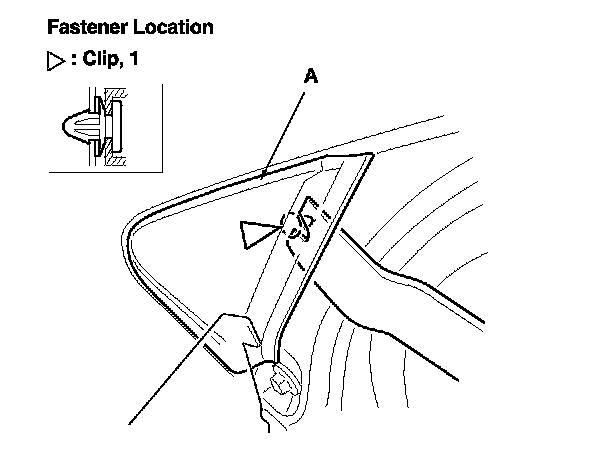

2. Insert an appropriate trim tool under the A-pillar corner trim (A) near the upper clip. Carefully pry up on the trim to detach the clip.






3. Pull the A-pillar corner trim (A) back by hand to detach remaining lower clips, then remove the trim.

4. Install the trim in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clip areas into place securely.
