Interior Trim Removal/Installation - Rear Shelf Extension (2-Door)

Interior Trim Removal/Installation - Rear Shelf Extension

Special Tools Required

- KTC trim tool set SOJATP2014*

Rear Shelf Extension - 2-door

NOTE:

- Take care not to bend or scratch the extension or the trim.

- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Remove these items:
- Rear shelf Interior Trim Removal/Installation - Rear Shelf (GX Model)

- Rear side trim panel Interior Trim Removal/Installation - Rear Side Area (2-Door)

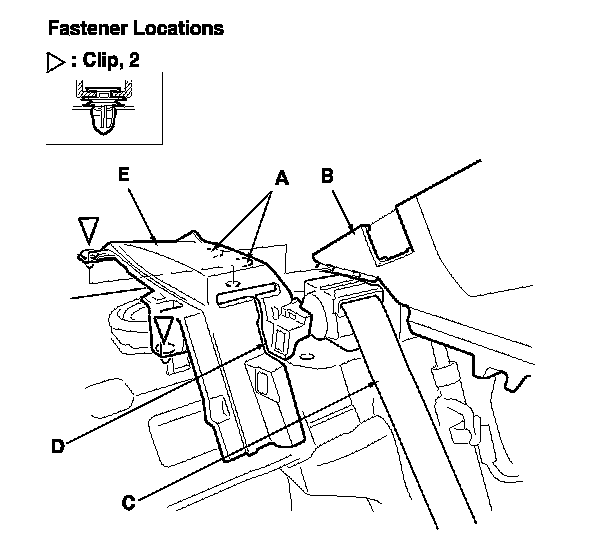

2. Detach the clips, and release the hooks (A) from the quarter pillar trim (B).

3. Pull out the rear seat belt (C) through the slit (D) in the rear shelf extension (E), then remove it.

4. Install the extension in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.

- When installing the rear shelf extension, slip the rear seat belt through the slit in the extension.
