Passenger's Dashboard Undercover Removal/Installation

Passenger's Dashboard Undercover Removal/Installation

For Some Models

NOTE: Take care not to scratch the dashboard or the related parts.

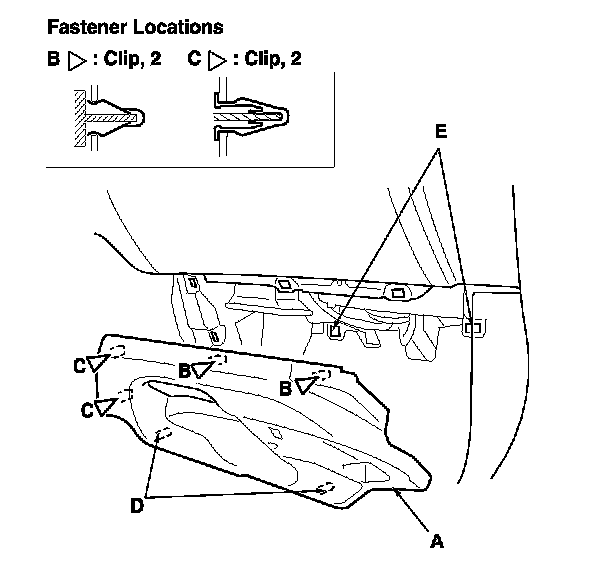

1. Remove the passenger's dashboard undercover (A).
-1 Gently pull out the rear edge of the undercover to detach the clips (B, C).
Pull the undercover to release the pins (D) from the holders (E).

2. Install the undercover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clips into place securely.
