Subframe: Service and Repair

Subframe Replacement

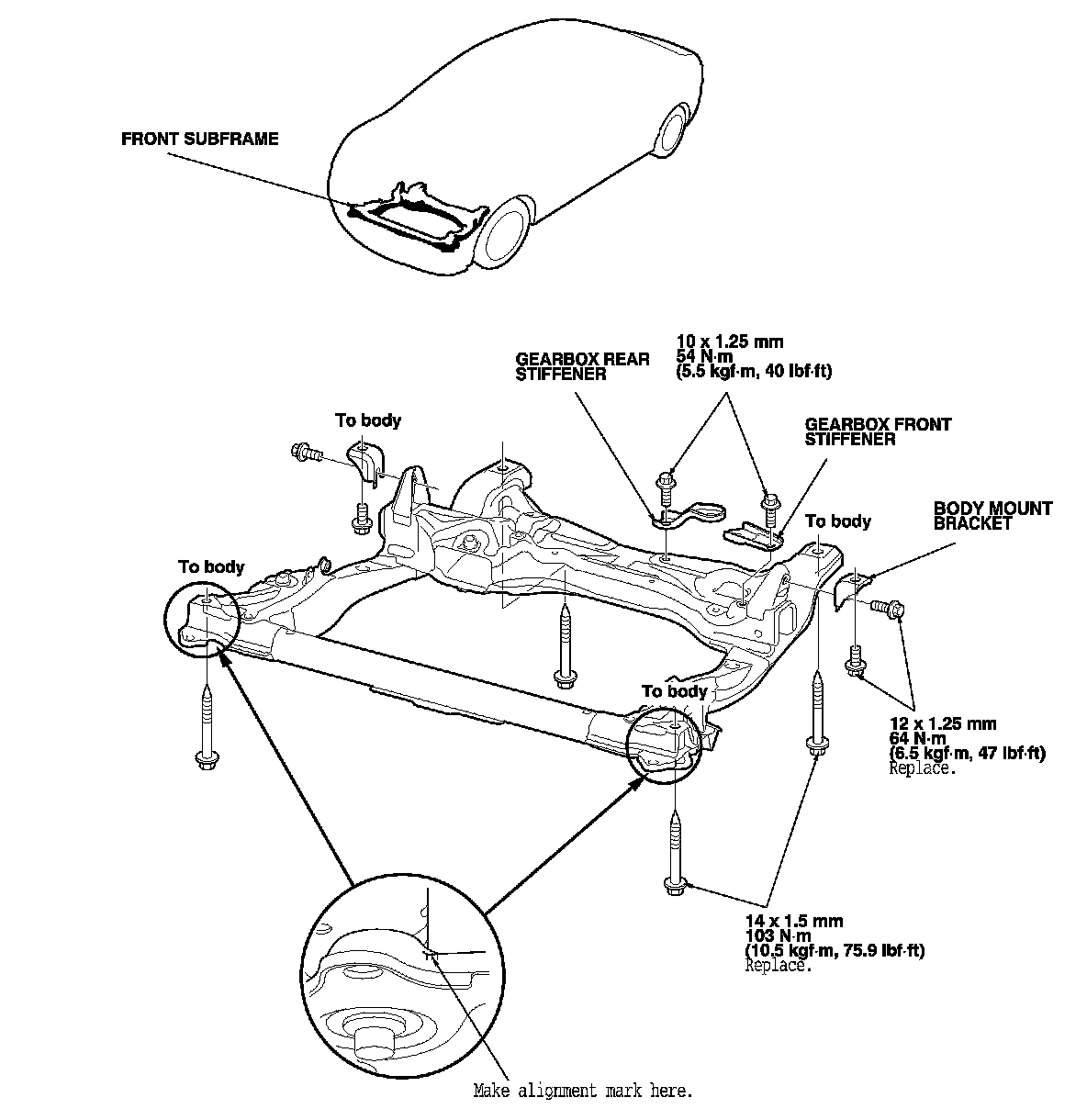

Front Subframe Torque

NOTE:

- Before removing the subframe, make a mark where the subframe lines up with the body for reinstallation.

- Loosely install the new subframe mounting bolts, the front stiffener mounting bolts, the rear stiffener mounting bolts, and the front and rear stiffeners.

- After mounting the subframe and brackets loosely, align the reference marks with the body, then tighten the bolts.
