Rear Fender Liner: Service and Repair

Rear Fender Cover Replacement

For Some Models

NOTE: Take care not to scratch the rear bumper or the body.

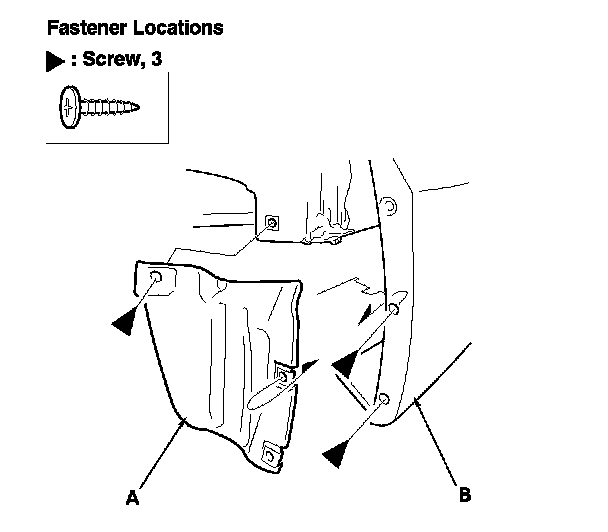

1. Remove the screws, then remove the rear fender cover (A) from the rear bumper (B) and the body.

2. Install the fender cover in the reverse order of removal.
