Trunk / Liftgate Release Lever: Service and Repair

Trunk Lid Opener/Fuel Fill Door Opener Replacement

Special Tools Required

- KTC trim tool set SOJATP2014*
NOTE:

- Put on gloves to protect your hands.

- Take care not to scratch the rear bumper.

- Take care not to kink the trunk lid opener cable/fuel fill door opener cable.

- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

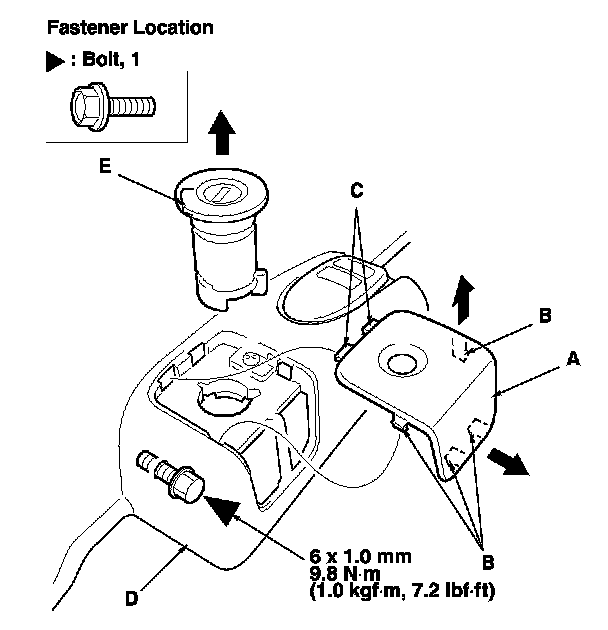

1. Pry out the bottom edge of the front side cap (A) at the notch with the appropriate trim tool to release the hooks (B, C), then remove the cap from the front door sill trim (D).

2. Remove the opener lock cylinder (E), and loosen the opener mounting rear bolt.

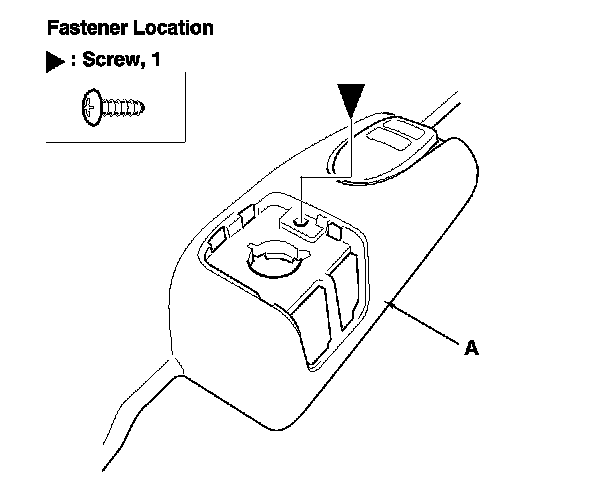

3. Remove the screw securing the front door sill trim (A).

4. Remove the front door sill trim (driver's side):
- 2-door. Service and Repair

- 4-door. Interior Trim Removal/Installation - Front Door Sill Area (4-Door)

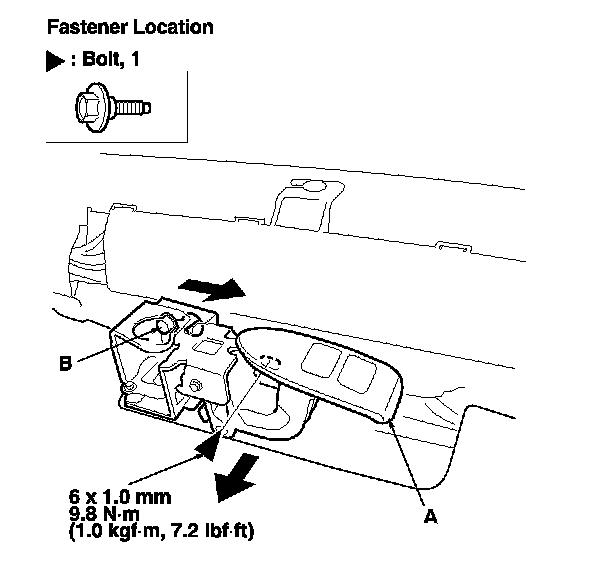

5. Remove the opener mounting bolt, then remove the trunk lid opener/fuel fill door opener (A) from the opener mounting rear bolt (B).

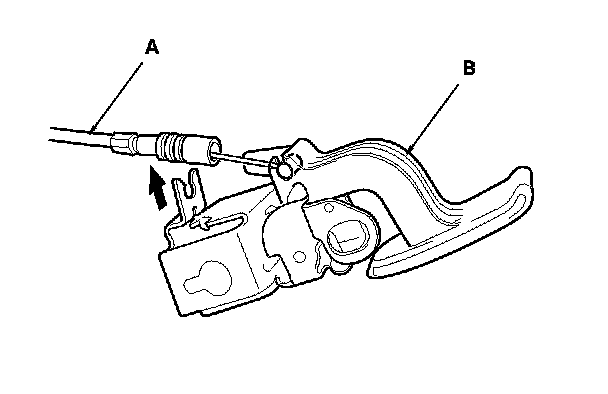

6. Disconnect the trunk lid opener cable/fuel fill door opener cable (A), from the opener (B).

7. Install the opener in the reverse order of removal, and note these items:
- Make sure the opener cable is connected properly.

- Make sure the trunk lid and the fuel fill door open properly and lock securely.

- Fix at the original position in the outer end of the cable on the trunk lid opener/fuel fill door opener securely. And check the trunk lid latch operation: Make sure the trunk lid latch, and the fuel fill door latch unlock when pulling, and pushing the trunk lid opener/fuel fill door opener. If necessary, adjust the position of the cable end.

- Before tightening the opener mounting rear bolt, position the front door sill trim against the opener certainly by screwing the trim onto the opener.
