Home >> Honda >> 2010 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Keyless Starting System >> Diagrams >> IG1 And IG2/Start Fuse Connector View (Honda Accessory: A/T)

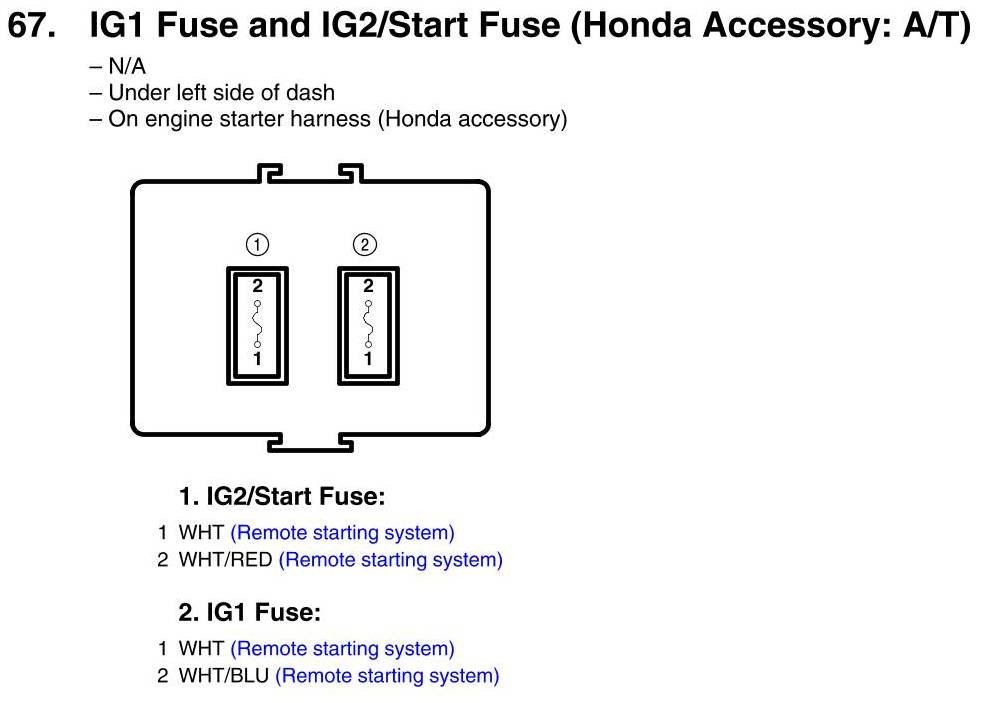

IG1 And IG2/Start Fuse Connector View (Honda Accessory: A/T)
