81-61

SRS DTC Troubleshooting: 81-61, 81-62, 85-61, 85-62

DTC 81-61, 85-61: No Signal From the ODS Unit

DTC 81-62, 85-62: Incorrect Data From the ODS Unit

NOTE: Before doing this troubleshooting procedure, review SRS Precautions and Procedures, Service and Repair General Troubleshooting Information, Reading and Clearing Diagnostic Trouble Codes and Battery Terminal Disconnection and Reconnection. Procedures

1. Make sure nothing is on the front passenger's seat.

2. Clear the DTC memory. Reading and Clearing Diagnostic Trouble Codes

3. Turn the ignition switch to ON (II), then wait for 10 seconds.

4. Read the DTC. Reading and Clearing Diagnostic Trouble Codes

Is DTC 81-61, 85-61, 81-62, or 85-62 indicated?
YES - Go to step 5.

NO - Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures. Reading and Clearing Diagnostic Trouble Codes If another DTC is indicated, troubleshoot the DTC.


5. Turn the ignition switch to LOCK (0).

6. Check the connection between the ODS unit harness 18P connector and the ODS unit.

Is the connection OK?
YES - Go to step 7.

NO - Repair the poor connection, then clear the DTC. If DTC 85-61 or 85-62 is still present, go to step 6.


7. Check the No. 9 (7.5 A) fuse in the under-dash fuse/relay box.

Is the fuse OK?
YES - Go to step 8.

NO - Replace the fuse, then turn the ignition switch ON (II). If the fuse blows again, check for a short in the No. 9 (7.5 A) fuse circuit (floor wire harness, front passenger's seat wire harness (with seat heater), or ODS unit harness), then clear the DTC.

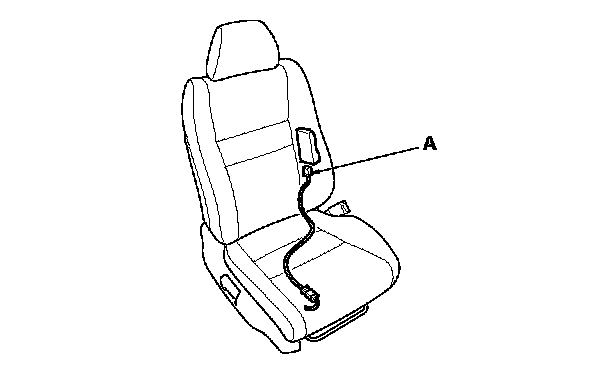

8. Disconnect the ODS unit harness 18P connector (A) from the ODS unit.

9. Turn the ignition switch to ON (II).






10. Measure the voltage between ODS unit harness 18P connector terminal No. 1 the and body ground. There should be battery voltage.

Is there battery voltage?
YES - Go to step 11.

NO - Open in the floor wire harness, the front passenger's seat wire harness (with seat heater), or the ODS unit harness; replace the faulty harness, then clear the DTC.






11. Turn the ignition switch to LOCK (0).

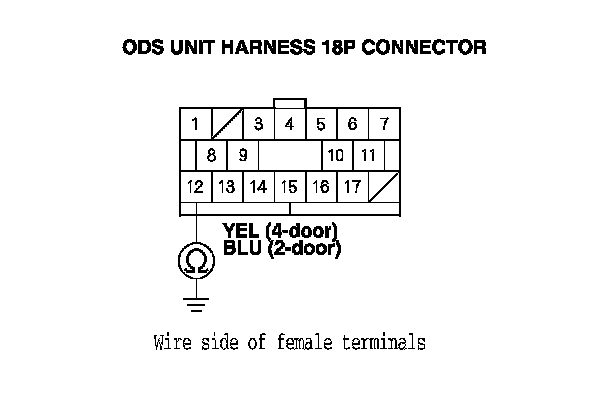

12. Measure the resistance between ODS unit harness 18P connector terminal No. 12 and body ground. There should be less than 1.0 Ohms.

Is the resistance as specified?
YES - Go to step 13.

NO - Open in the ODS unit harness, the front passenger's seat wire harness (with seat heater), the floor wire harness, or poor ground connection at G602:

- 4-door
- 2-door

If G602 is OK, replace the faulty harness, then clear the DTC.






13. Disconnect the negative cable from the battery, then wait at least 3 minutes.

14. Disconnect SRS unit connector A (28P) from the SRS unit. Service and Repair

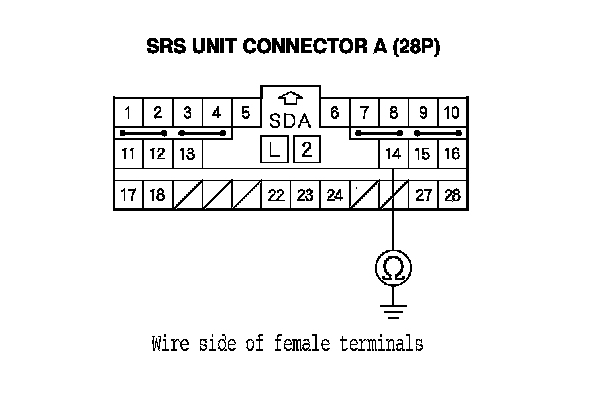

15. Measure the resistance between SRS unit connector A (28P) terminal No. 14 and body ground. There should be an open circuit or at least 1 MOhms.

Is the resistance as specified?
YES - Go to step 16.

NO - Short to ground in the dashboard wire harness, the front passenger's seat wire harness (with seat heater), the floor wire harness, or the ODS unit harness; replace the faulty harness, then clear the DTC.






16. Reconnect the negative cable to the battery.

17. Turn the ignition switch to ON (II).

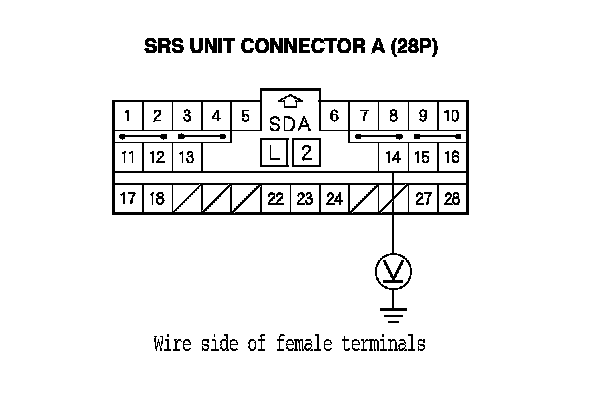

18. Measure the voltage between SRS unit connector A (28P) terminal No. 14 and body ground. There should be less than 0.2 V.

Is the voltage as specified?
YES - Go to step 19.

NO - Short to power in the dashboard wire harness, the floor wire harness, the front passenger's seat wire harness (with seat heater), or the ODS unit harness; replace the faulty harness, then clear the DTC.






19. Turn the ignition switch to LOCK (0).

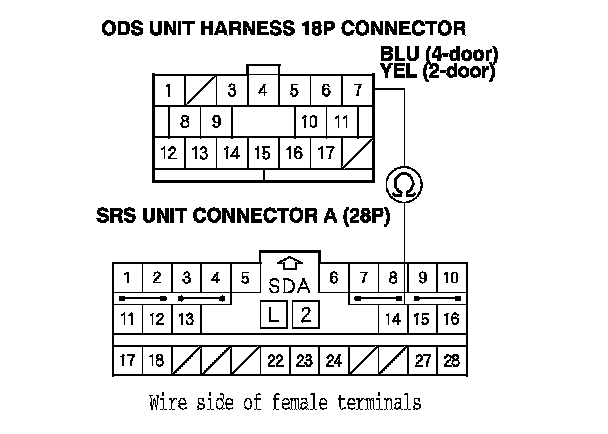

20. Measure the resistance between SRS unit connector A (28P) terminal No. 14 and ODS unit harness 18P connector terminal No. 7. There should be less than 1.0 Ohms.

Is the resistance as specified?
YES - Faulty ODS unit or SRS unit; replace the ODS unit, ODS Unit Replacement then clear the DTC. If the DTC is still present, replace the SRS unit. SRS Unit Replacement

NO - Open in the dashboard wire harness, the floor wire harness, the front passenger's seat wire harness (with seat heater), or the ODS unit harness; replace the faulty harness, then clear the DTC.
