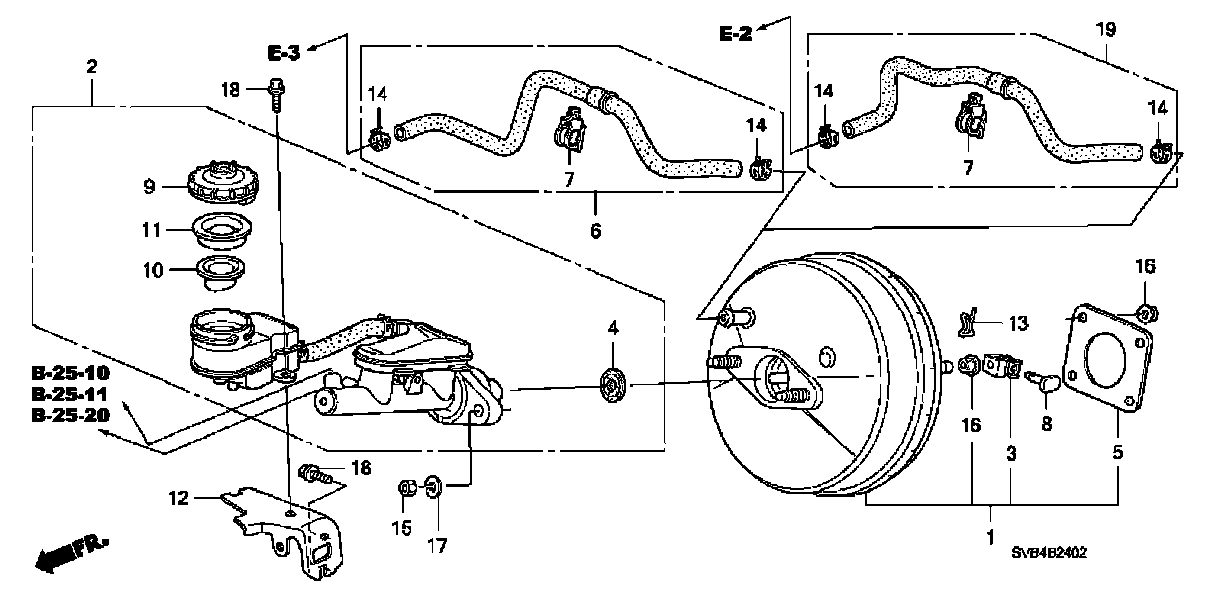

Brake Master Cylinder - Master Power:



Front Brake:



Rear Brake (Disk):

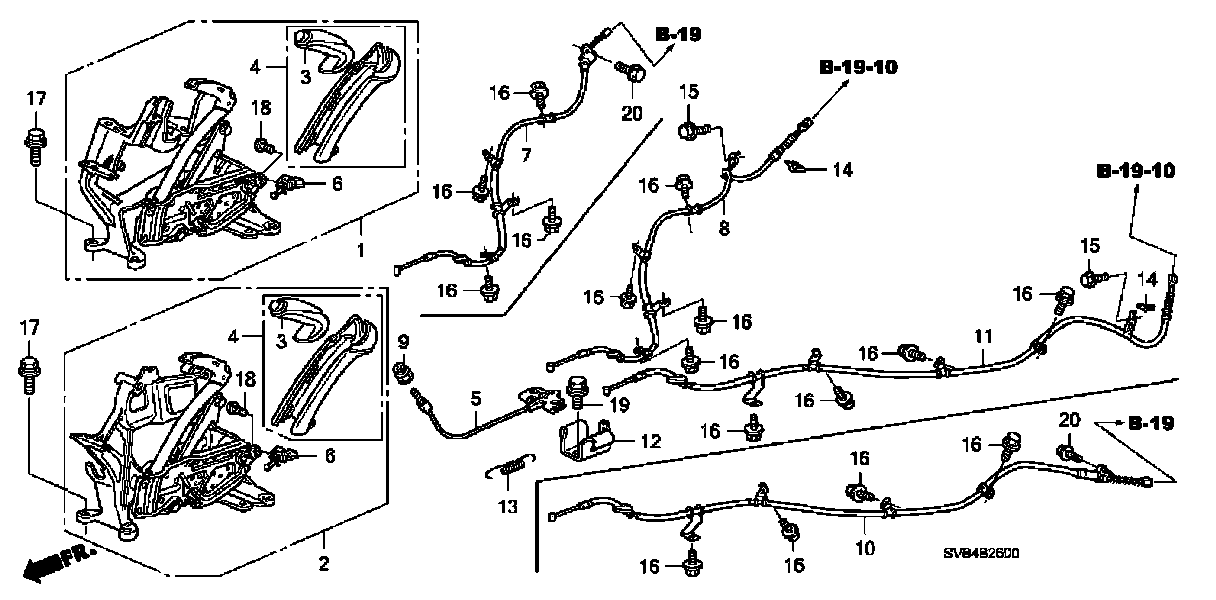

Parking Brake:



Pedal Assembly:

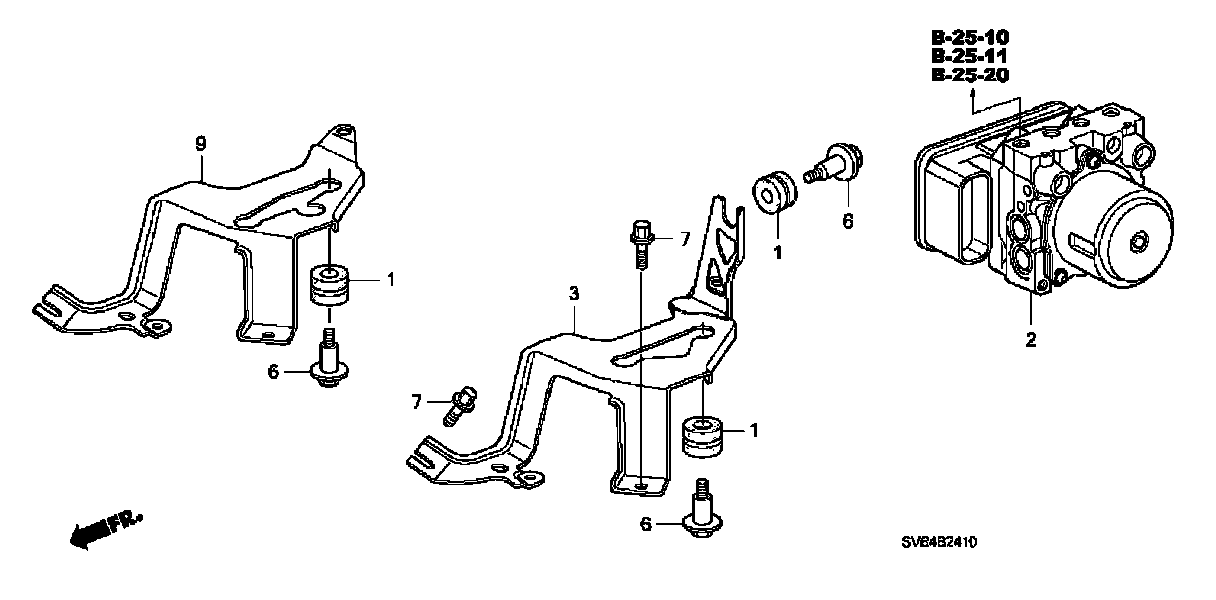

VSA Modulator:

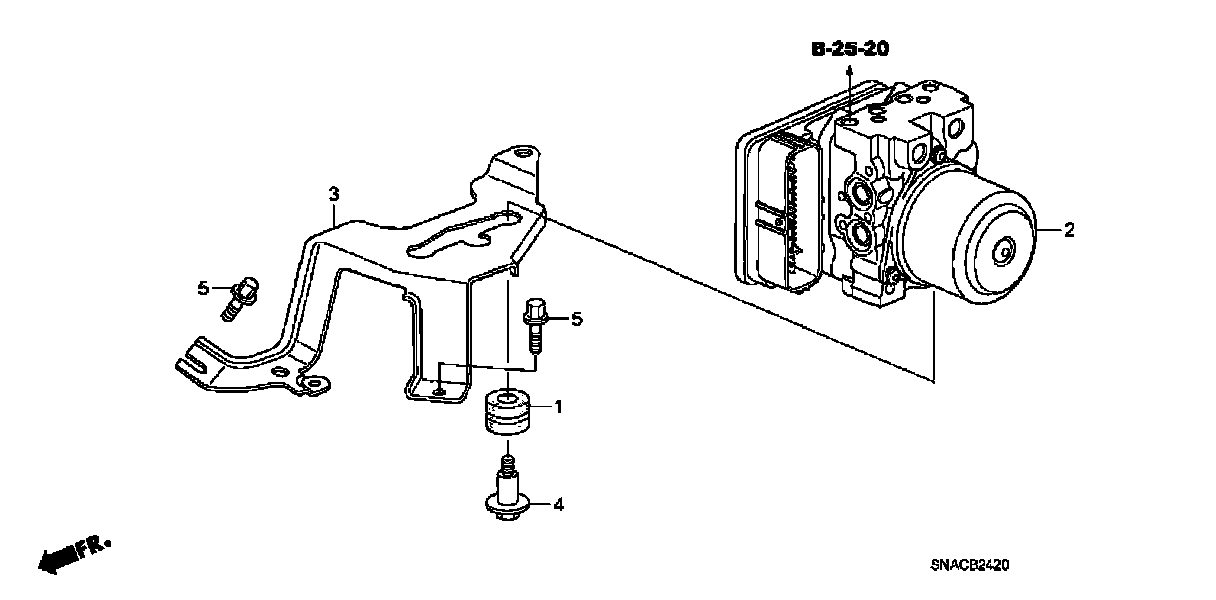

ABS - VSA Modulator:

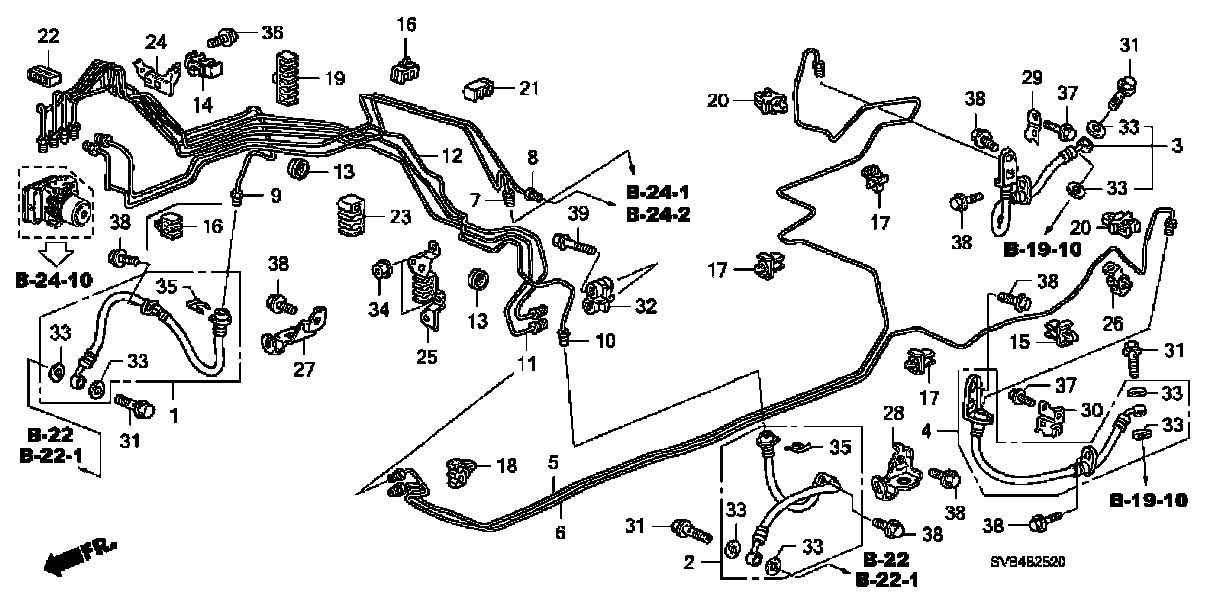

Brake Lines (VSA):
