Wipers/Washers MICU Input Test

Wipers/Washers MICU Input Test

1. Before testing the wiper/washer system, troubleshoot the system using B-CAN System Diagnosis Test Mode A, Troubleshooting - B-CAN System Diagnosis Test Mode A and check the No. 10 (7.5 A) and No. 38 (30 A) fuses in the under-dash fuse/relay box.

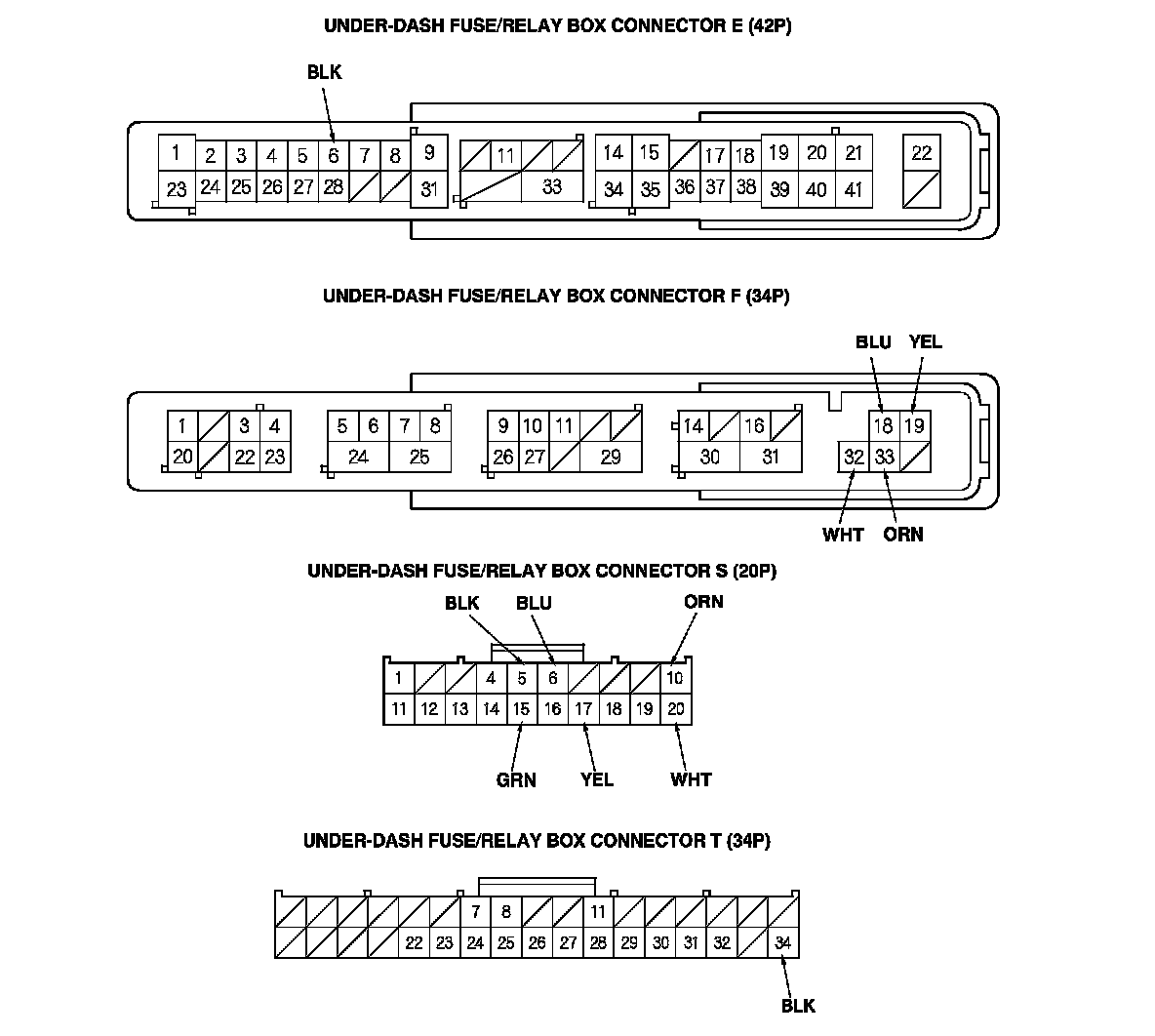

2. Disconnect under-dash fuse/relay box connectors E, F, S, and T.
NOTE: All connector views are shown from wire side of female terminals.

3. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.

- If the terminals look OK, go to step 4.

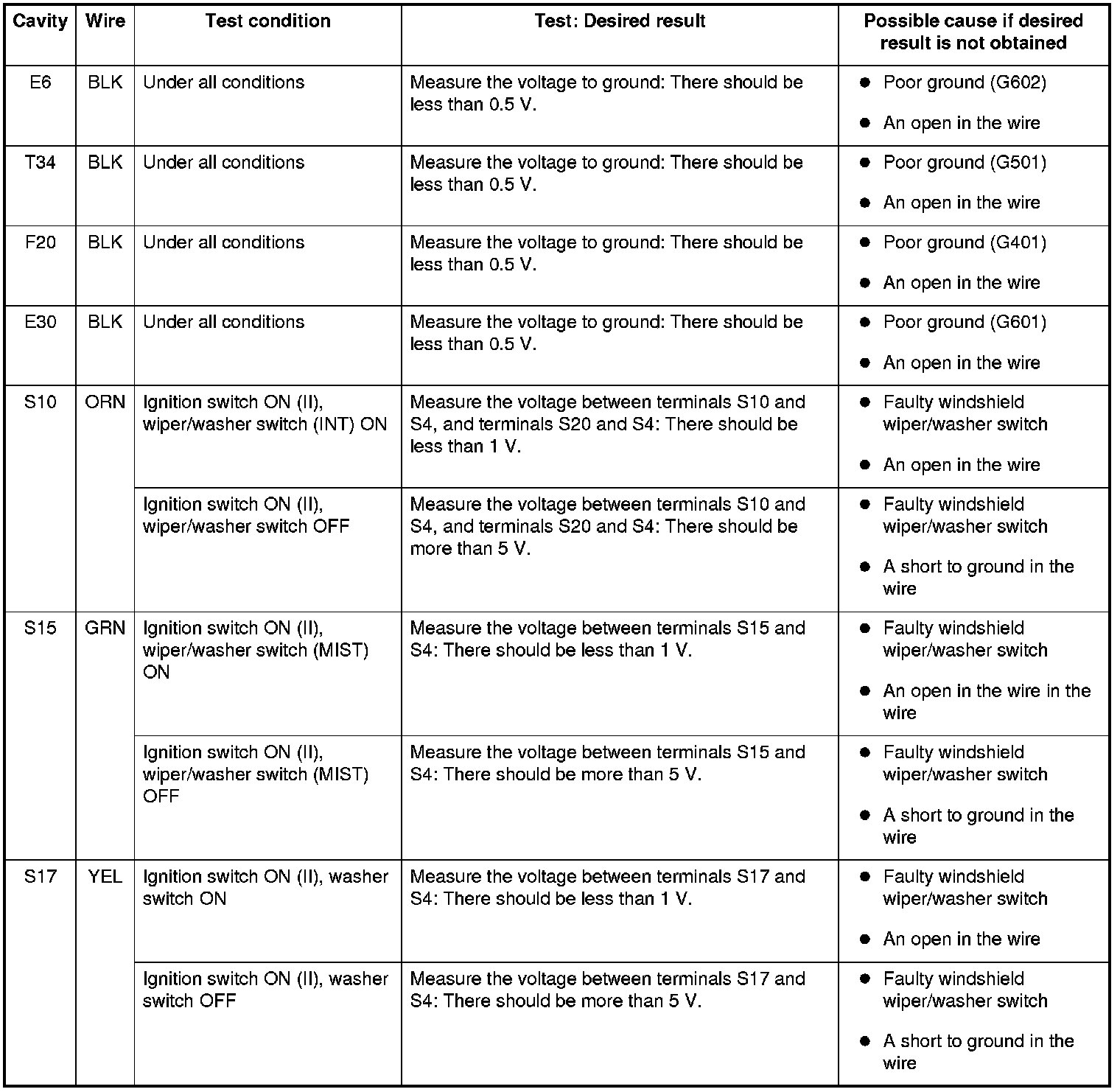

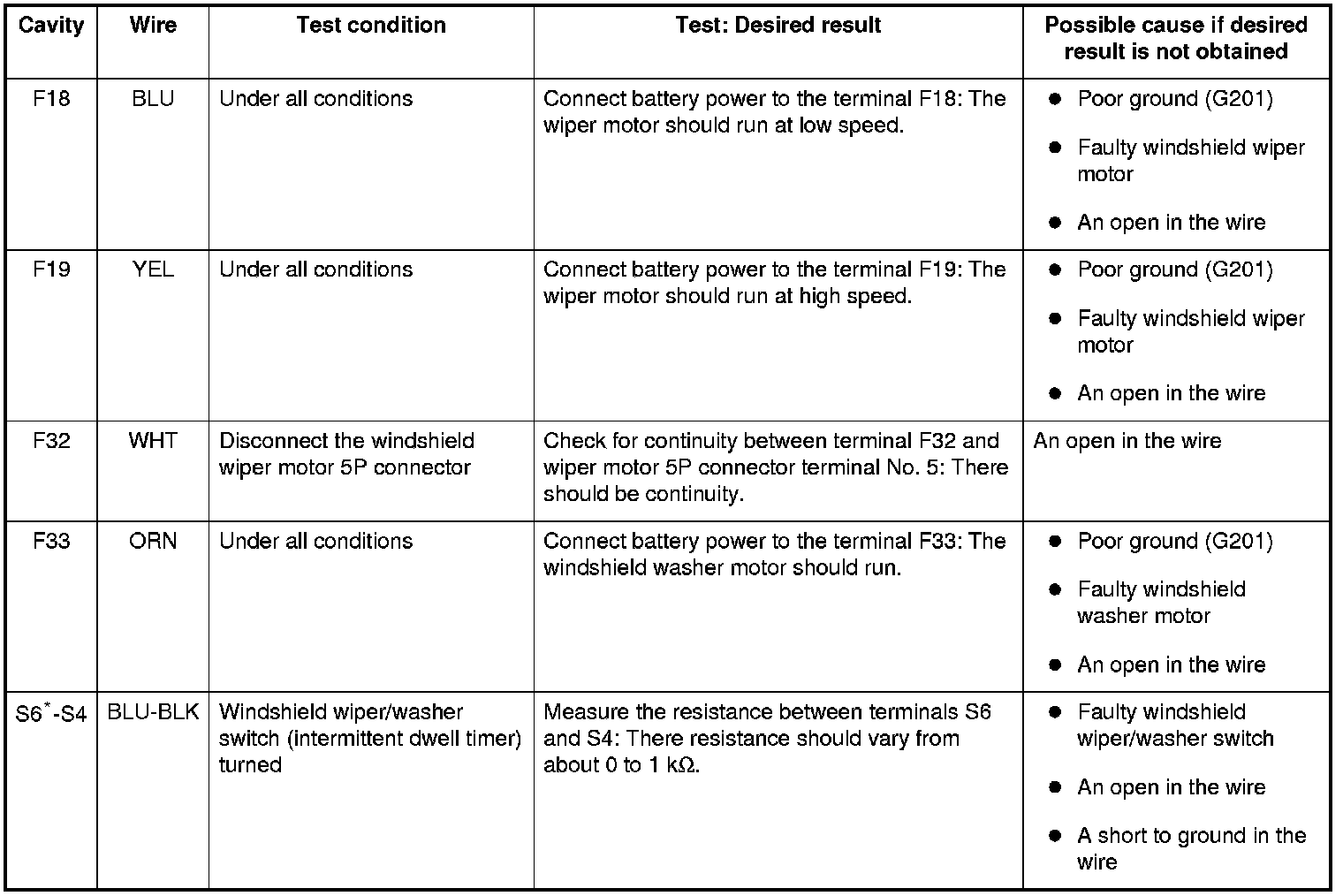

4. With the connectors still disconnected, do these input tests at the following connectors.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, go to step 5.





*: USA EX, EX-L, and Si models and Canada except '09 DX, DX-G models

5. Reconnect the connectors to the under-dash fuse/relay box, and do these input tests at the following connectors.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, the MICU must be faulty; replace the under-dash fuse/relay box. Under-Dash Fuse/Relay Box Removal and Installation
