Washer Motor Test

Washer Motor Test

1. Remove the right inner fender.
- 2-door Front Inner Fender Replacement (2-Door)

- 4-door Front Inner Fender Replacement (4-Door)

2. Disconnect the 2P connector (A) from the washer motor (B).

3. Test the motor by connecting battery power to terminal No. 1 and ground terminal No. 2 of the washer motor. The motor should run.
- If the motor does not run, or fails to run smoothly, replace it.

- If the motor runs smoothly, but little or no washer fluid is pumped, check for a disconnected or blocked washer hose, or a clogged washer motor outlet.

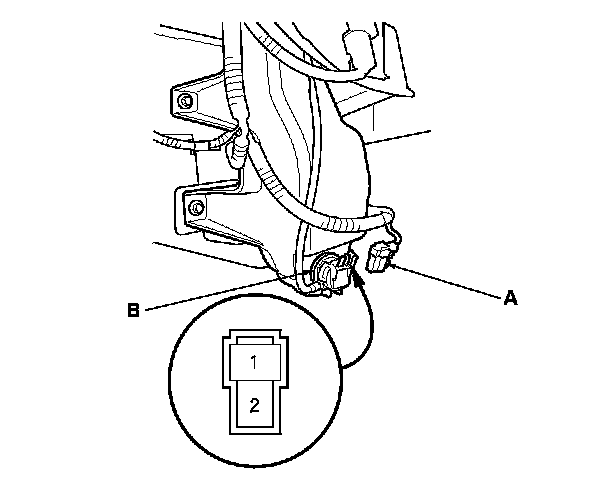

4-door

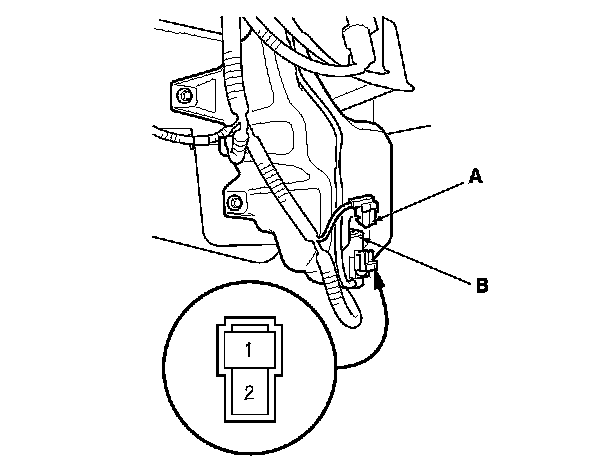

2-door
