Washer Fluid Level Switch Test (Canada Models)

Washer Fluid Level Switch Test

Canada models

1. Remove the right inner fender.
- 2-door Front Inner Fender Replacement (2-Door)

- 4-door Front Inner Fender Replacement (4-Door)

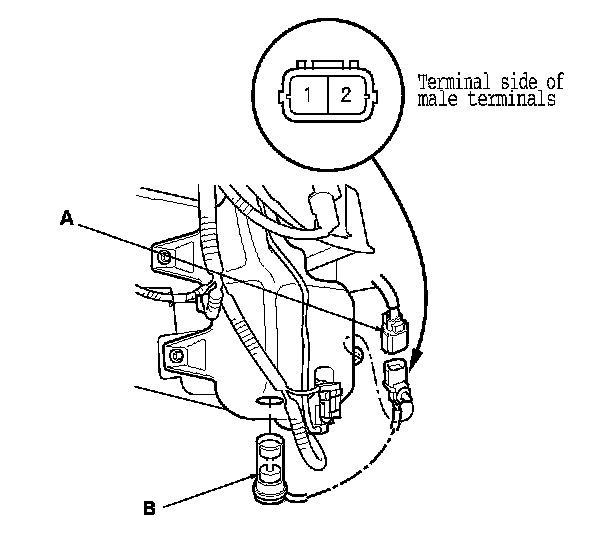

2. Disconnect the 2P connector (A) from the washer fluid level switch (B).

3. Remove the washer fluid level switch from the washer reservoir.
NOTE: Fluid may flow out of the opening.

4. Check for continuity between terminals No. 1 and No. 2 in each float position.
- There should be continuity when the float is down.

- There should be no continuity when the float is up.

5. If the continuity is not as specified, replace the switch.
