Body - Front Door Windows Rattle

09-027

April 30, 2009

Applies To:
2007-09 Civic Si 4-Door - ALL

Front Windows Rattle

SYMPTOM

The front windows rattle when driving with them halfway open.

PROBABLE CAUSE

There is too much clearance between the window frame and the glass run channel.

CORRECTIVE ACTION

Install EPT sealer in the window frame to reduce the clearance.

PARTS INFORMATION
EPT Sealer (10T): P/N 06992-SA5-000, H/C 2086668
(One roll repairs about 30 vehicles.)

WARRANTY CLAIM INFORMATION

In warranty:
The normal warranty applies.

Operation Number: 8240A8

Flat Rate Time: 0.4 hour

Failed Part: P/N 72275-SNA-A01
H/C 8053498

Defect Code: 03214

Symptom Code: 03267

Skill Level: Repair Technician

Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Parts and Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

REPAIR PROCEDURE

1. Lower the front windows all the way.

2. Cut four 10 mm x 150 mm pieces of EPT sealer (10T).

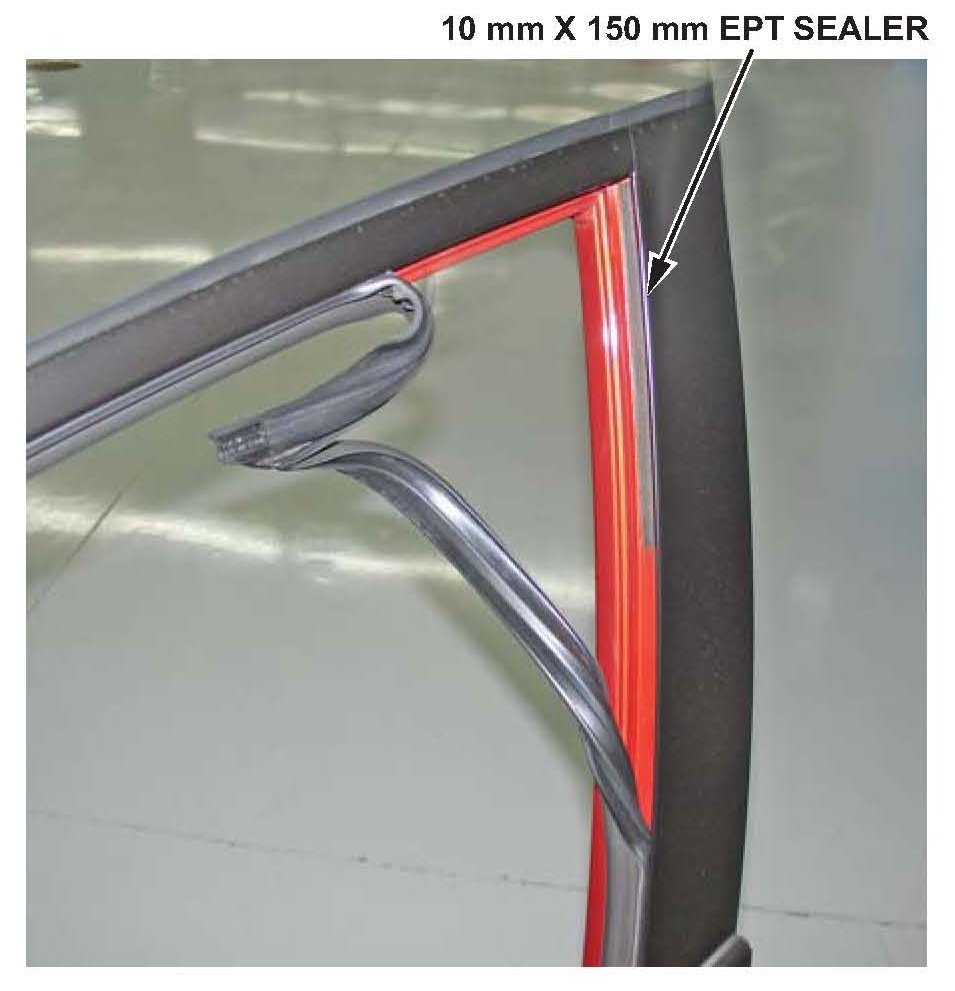

3. Pull the upper front portion of the glass run channel out from the window frame. Install one piece of EPT sealer into the window frame starting at the top of the frame.

4. Reinstall the upper front portion of the glass run channel.

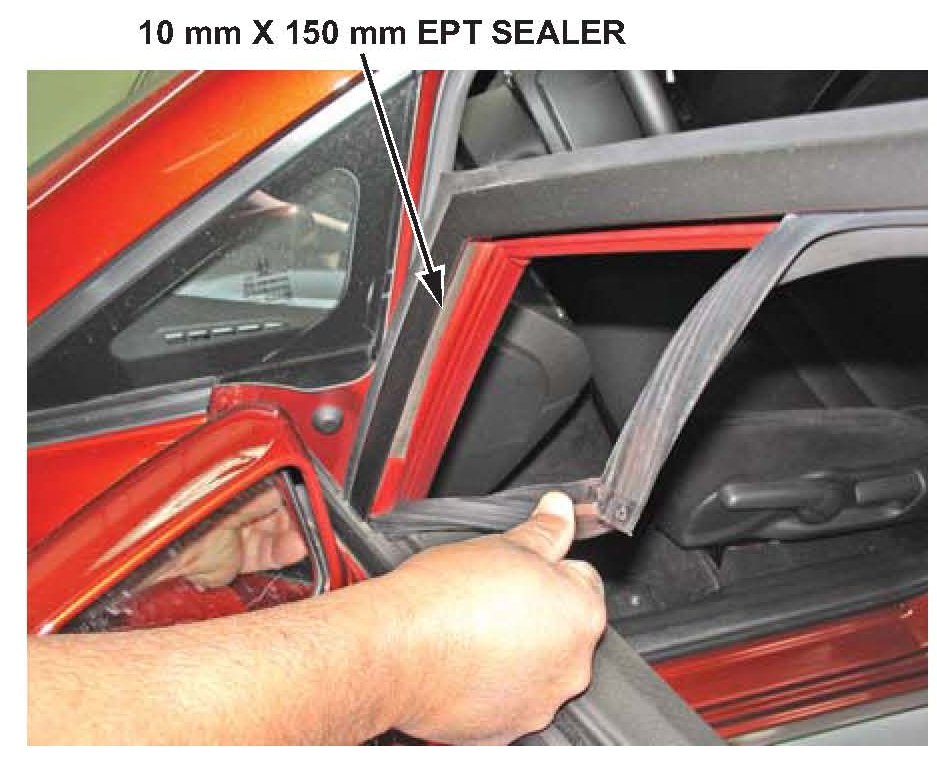

5. Pull the upper rear portion of the glass run channel out from the window frame. Install one piece of EPT sealer in the window frame starting at the upper corner of the glass run channel.

6. Reinstall the upper rear portion of the glass run channel.

7. Repeat steps 3 thru 6 for the other side.
