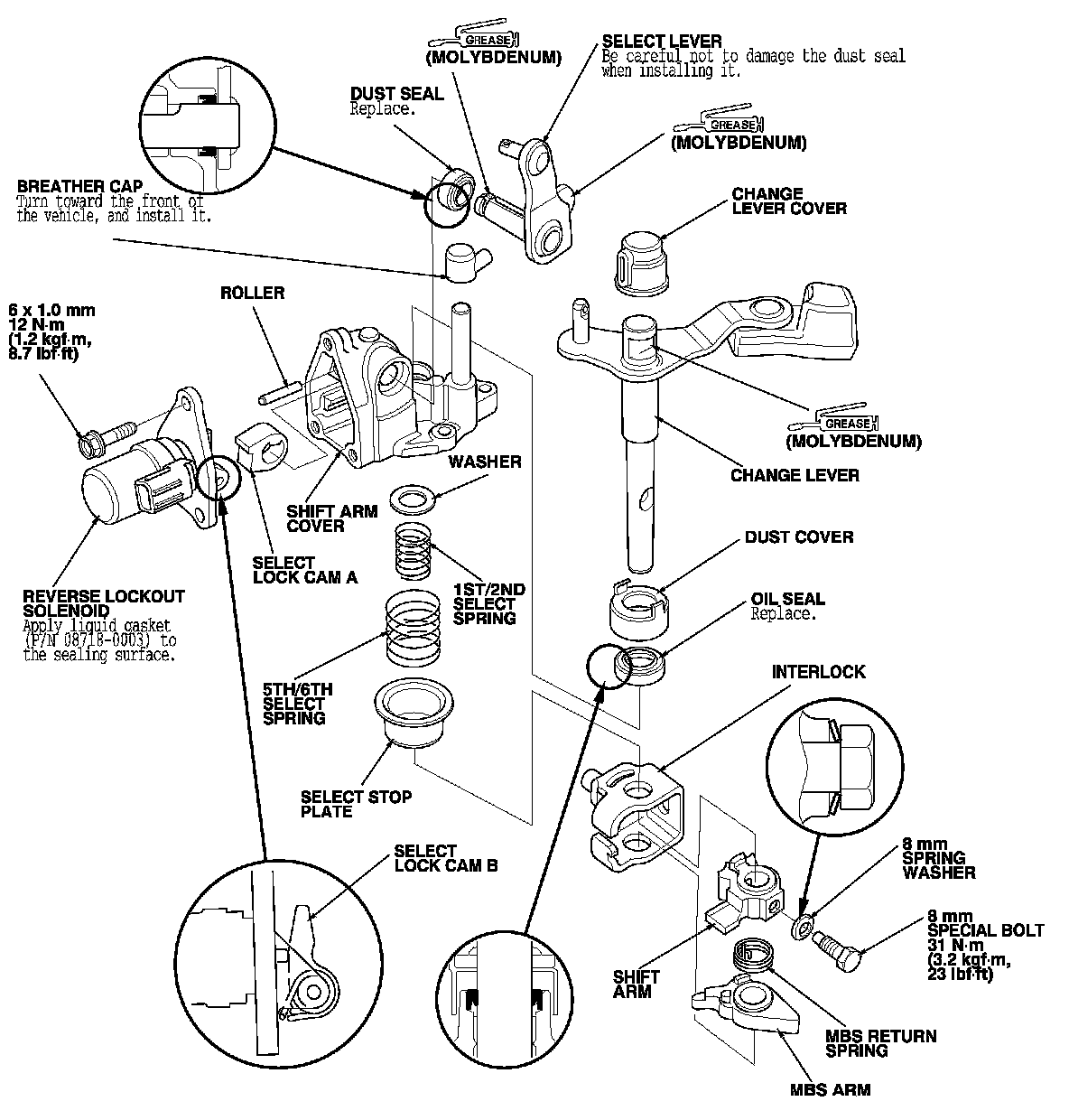

M/T Change Lever Assembly Disassembly/Reassembly

M/T Change Lever Assembly Disassembly/Reassembly

NOTE:

- If too much time has passed after applying liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.

- Prior to reassembling, clean all parts in solvent, dry them, and apply grease to the contact surfaces as shown.
