M/T Differential Oil Seal Replacement

M/T Differential Oil Seal Replacement

Special Tools Required

- Oil seal driver attachment 07NAD-P20A100
- Driver handle, 15 x 135L 07749-0010000

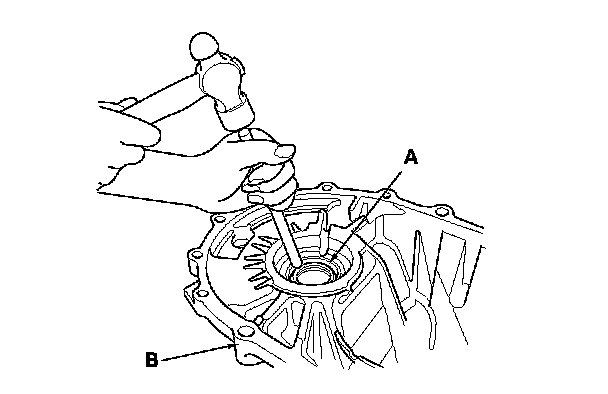

1. Remove the oil seal (A) from the transmission housing (B).
NOTE: Be careful not to damage the transmission housing while removing the oil seal.

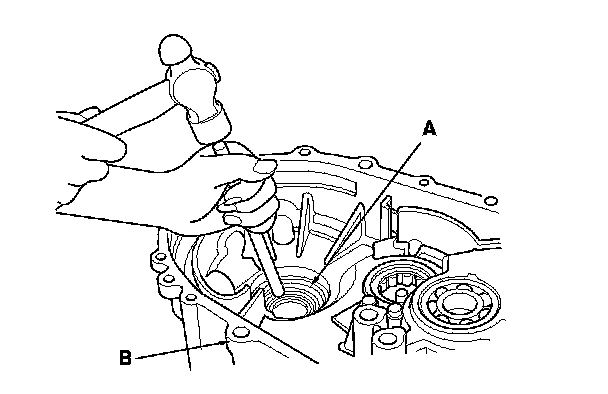

2. Remove the oil seal (A) from the clutch housing (B).
NOTE: Be careful not to damage the clutch housing while removing the oil seal.

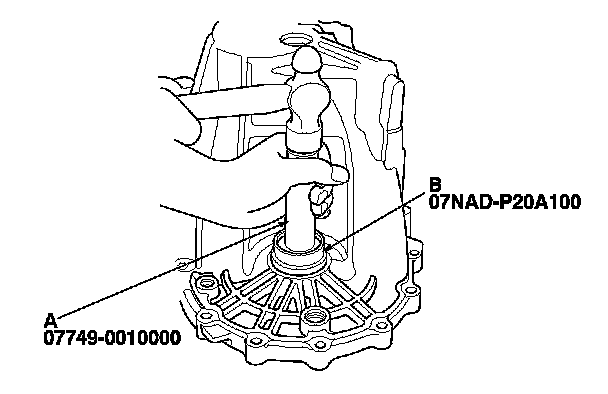

3. Install the new oil seal flush with the transmission housing with the 15 x 135L driver handle (A) and the oil seal driver attachment (B).

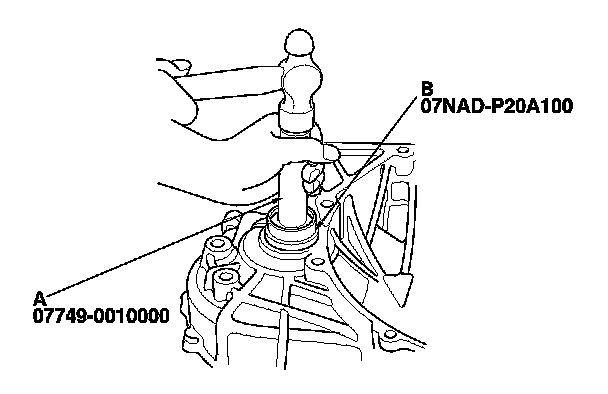

4. Install the new oil seal flush with the clutch housing with the 15 x 135L driver handle (A) and the oil seal driver attachment (B).
