M/T Differential Carrier, Final Driven Gear Replacement

M/T Differential Carrier, Final Driven Gear Replacement

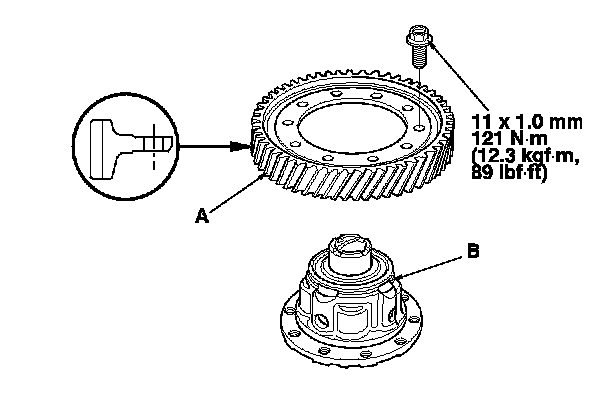

1. Loosen the bolts in a crisscross pattern in several steps, then remove the bolts and the final driven gear (A) from the differential carrier (B).

2. Install the final driven gear with the chamfer on the inside diameter facing the carrier. Tighten the bolts in a crisscross pattern in several steps.
