System Specifications

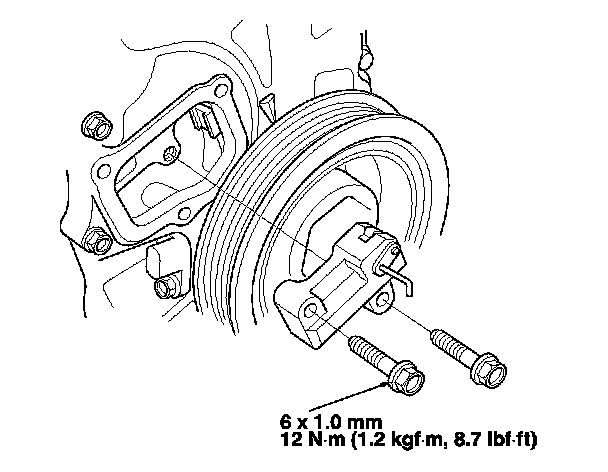

Timing Belt/Chain Tensioner Torque






Crankshaft Pulley Torque

Tighten the bolt to 49 N-m (5.0 kgf-m, 36 lbf-ft).
If the pulley bolt or crankshaft are new, tighten the bolt to 177 N-m (18.0 kgf-m, 130 lbf-ft), then remove the bolt and tighten it to 49 N-m (5.0 kgf-m, 36 lbf-ft).

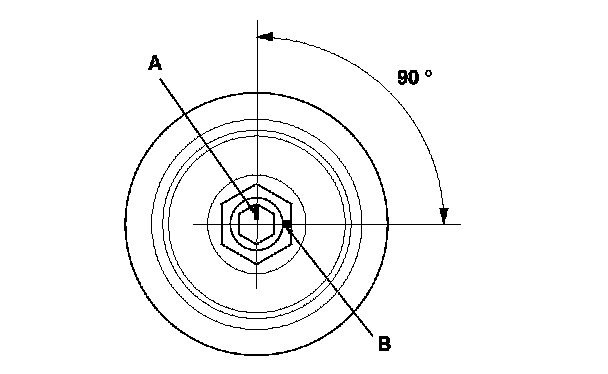

Then tighten the bolt an additional 90 °.

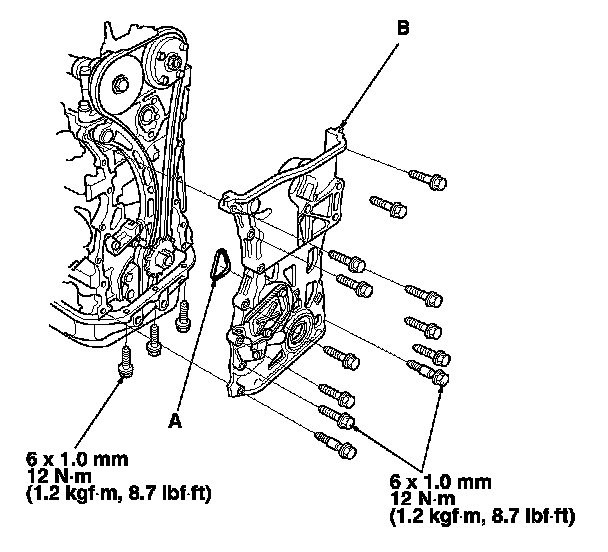

Timing Cover Torque
