Home >> Honda >> 2009 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Standards and Service Limits >> Valve Seat Specifications

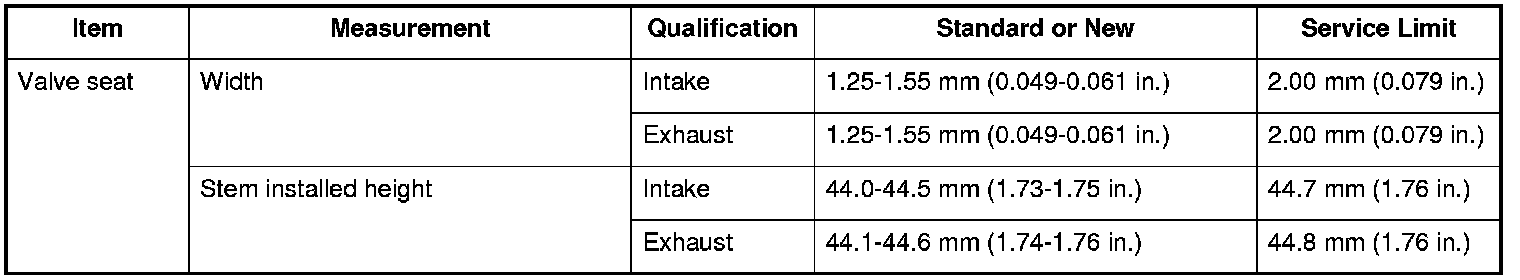

Valve Seat Specifications

Valve seat Specifications

Valve seat
