Tightening Torques and Sequences

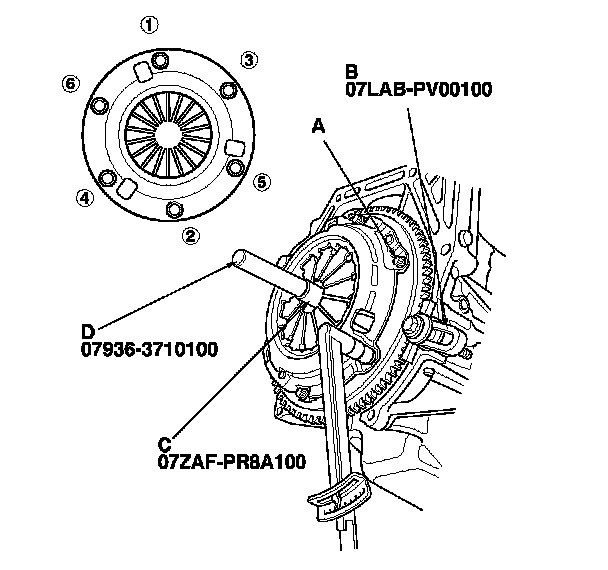

Torque the flywheel mounting bolts in a crisscross pattern in several steps.





Torque the pressure plate mounting bolts in a crisscross pattern. Tighten the bolts in several steps to prevent warping the diaphragm spring.








For information regarding Clutch Overhaul Specifications, please refer to Service and Repair. Service and Repair
