Braking Sensor/Switch: Testing and Inspection

Brake Pedal Position Switch Test

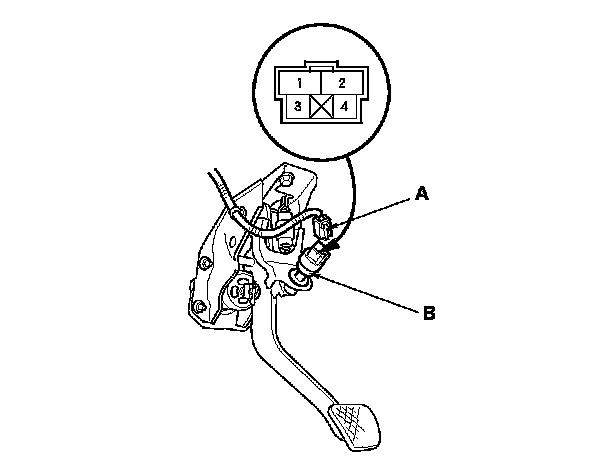

1. Disconnect the 4P connector (A) from the brake pedal position switch (B).

2. Check for continuity between terminals No. 1 and No. 2.
- There should be continuity when the brake pedal is pressed.

- There should be no continuity when the brake pedal is released.

3. Check for continuity between terminals No. 3 and No. 4 (with cruise control).
- There should be no continuity when the brake pedal is pressed.

- There should be continuity when the brake pedal is released.

4. If necessary, adjust or replace the switch, or adjust the pedal height. Adjustments
