Safing Sensor: Service and Repair

Rear Safing Sensor Replacement

Removal

1. Do the battery terminal disconnection procedure, Procedures then wait at least 3 minutes before starting work.

2. Remove the rear seat. Rear Seat Removal/Installation

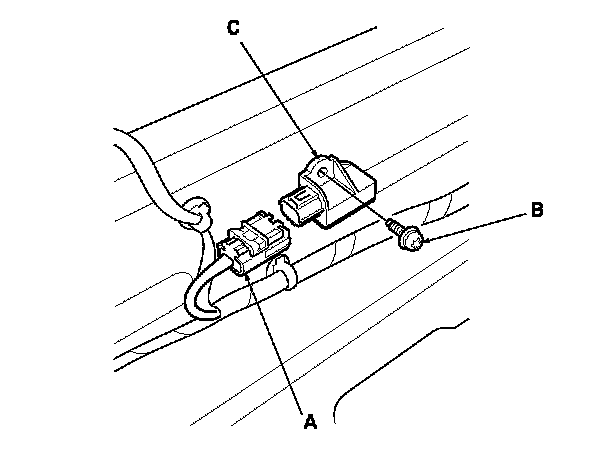

3. Disconnect the floor wire harness 4P connector (A) from the rear safing sensor.

4. Using a TORX T30 bit, remove the TORX bolt (B), then remove the rear safing sensor (C).






Installation

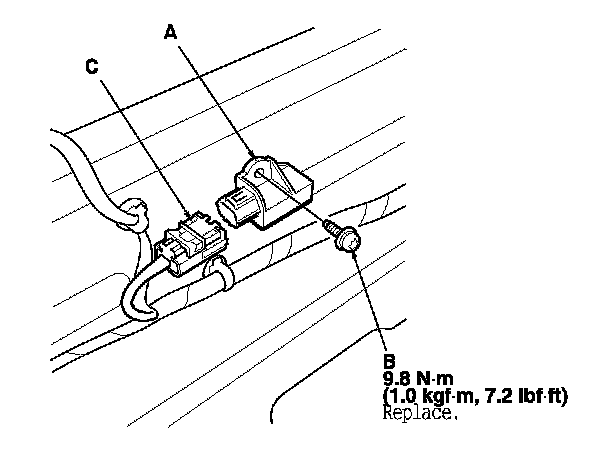

1. Install the rear safing sensor (A) with a new TORX bolt (B) then connect the floor wire harness 4P connector (C) to the rear safing sensor.

2. Do the battery terminal reconnection procedure. Procedures

3. Reinstall all removed parts.

4. Clear any DTCs. Initial Inspection and Diagnostic Overview

5. Confirm proper operation: Turn the ignition switch to ON (II); the SRS indicator should come on for about 6 seconds and then go off.
