ODS Unit Operation Check

ODS Unit Operation Check

Check the ODS operation after any of these actions.

- Replacement of front passenger's seat component(s) (except ODS unit and/or weight sensors)

- After a vehicle collision

- SRS unit replacement

Pre-operation Check Set-up

- Make sure all the components of the front passenger's seat are correctly installed.

- Position the front passenger's seat to the rearmost position.

- Adjust the seat-back recline to the forwardmost position.

- Do not move the seat from this position.

- Make sure nothing is on or under the front passenger's seat.

- Make sure there is nothing in the front passenger's seat-back pocket.

- Keep the windows moonroof closed.

- Do all calibration procedures, except test-driving, in the service bay.

- Make sure the vehicle is on level ground.

- Turn the heater and the A/C off.

- Do not touch the front passenger's seat during the calibration, unless you are prompted to or until you have completed the operation check.

- Do not expose the front passenger's seat to sudden temperature changes.

After Replacing Front Passenger's Seat Component(s)

1. Make sure the ignition switch is in LOCK (0)

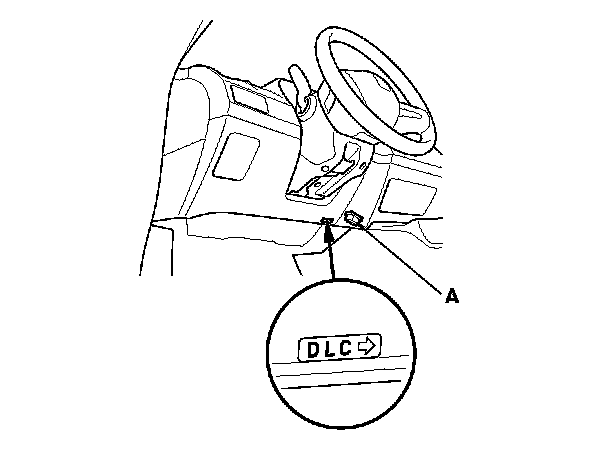

2. Connect the HDS to the data link connector (DLC) (A).

3. Turn the ignition switch to ON (II).

4. Make sure the HDS communicates with the vehicle and the SRS unit If it does not communicate, troubleshoot the DLC circuit.. Testing and Inspection

5. Drive the vehicle, accelerate to 20 mph (36 km/h), then stop on level ground.

6. From the HDS Main Menu, select SRS, then weight sensor, then Misc Test, then Inspection. In the HDS Inspection Menu, select SEAT OUTPUT CHK and follow the prompts until the ODS unit operation check is complete.
