Interior Light Switch Test/Replacement (With Moonroof)

Interior Light Switch Test/Replacement

With moonroof

NOTE: The interior light switch is built into the moonroof switch, and it switches the front individual map lights between the OFF and DOOR positions.

1. Remove the front individual map lights. Front Individual Map Light Test/Replacement (With Moonroof)

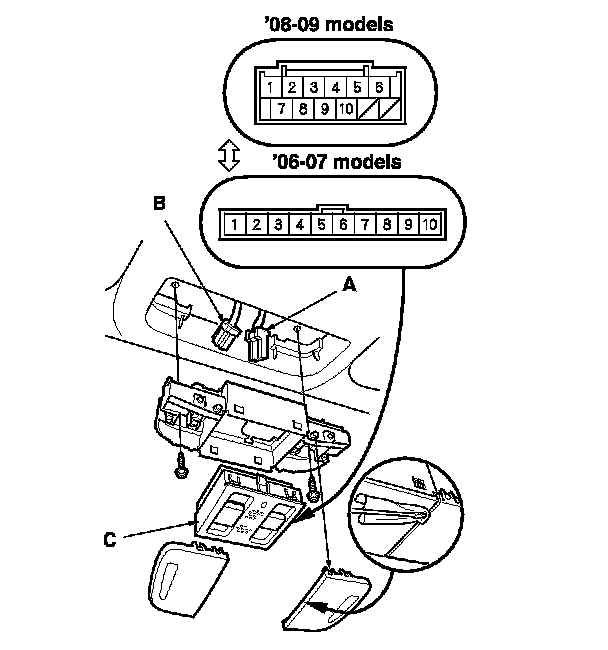

2. Disconnect the moonroof switch 10P [12P] connector (A) and map light 3P connector (B).





3. Remove the moonroof switch (C).

4. Check for continuity between moonroof switch 10P [12P] connector terminals No. 1 [No. 7] and No. 8 [No. 9].





- There should be continuity when the interior light switch is in the DOOR position.

- There should be no continuity when the interior light switch is in the OFF position.

5. If the continuity check is not as specified, replace the switch.

6. Install the interior light switch and front individual map light and light in the reverse order of removal.
