Hazard Warning Switch Test/Replacement

Hazard Warning Switch Test/Replacement

1. Remove the center panel.
- With Audio:
- '09 model Audio Unit Removal/Installation (Without Navigation, With Audio)

- With Navigation:
- '09 model Service and Repair

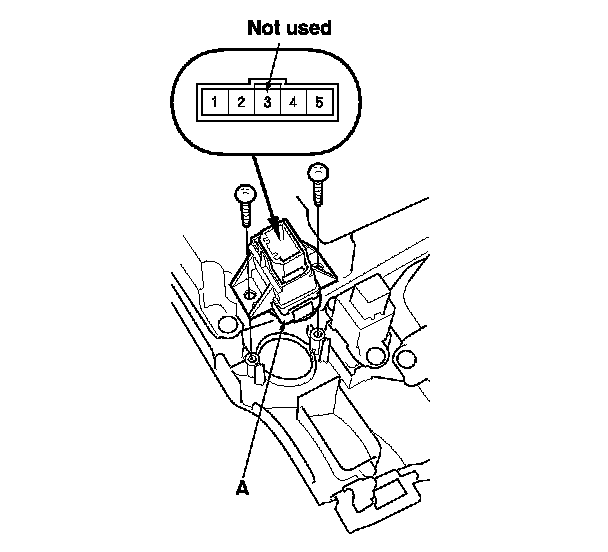

2. Remove the screws and the hazard warning switch (A).

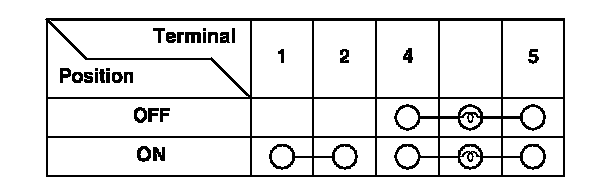

3. Check for continuity between the terminals in each switch position according to the table.

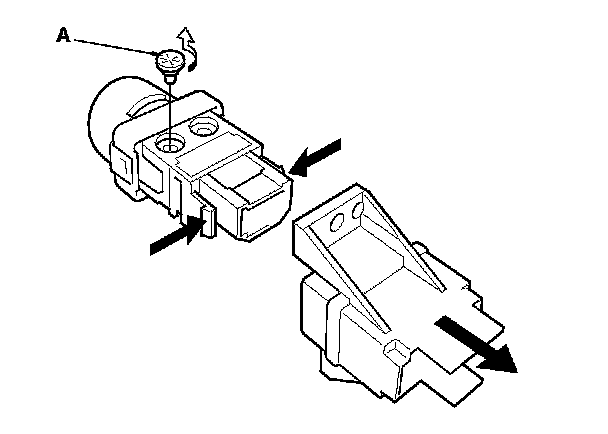

4. If the continuity is not as specified, replace the bulb (A) or the hazard warning switch.

5. Install the hazard warning switch in the reverse order of removal.
