Heating System Description (Without A/C)

Heating System Description

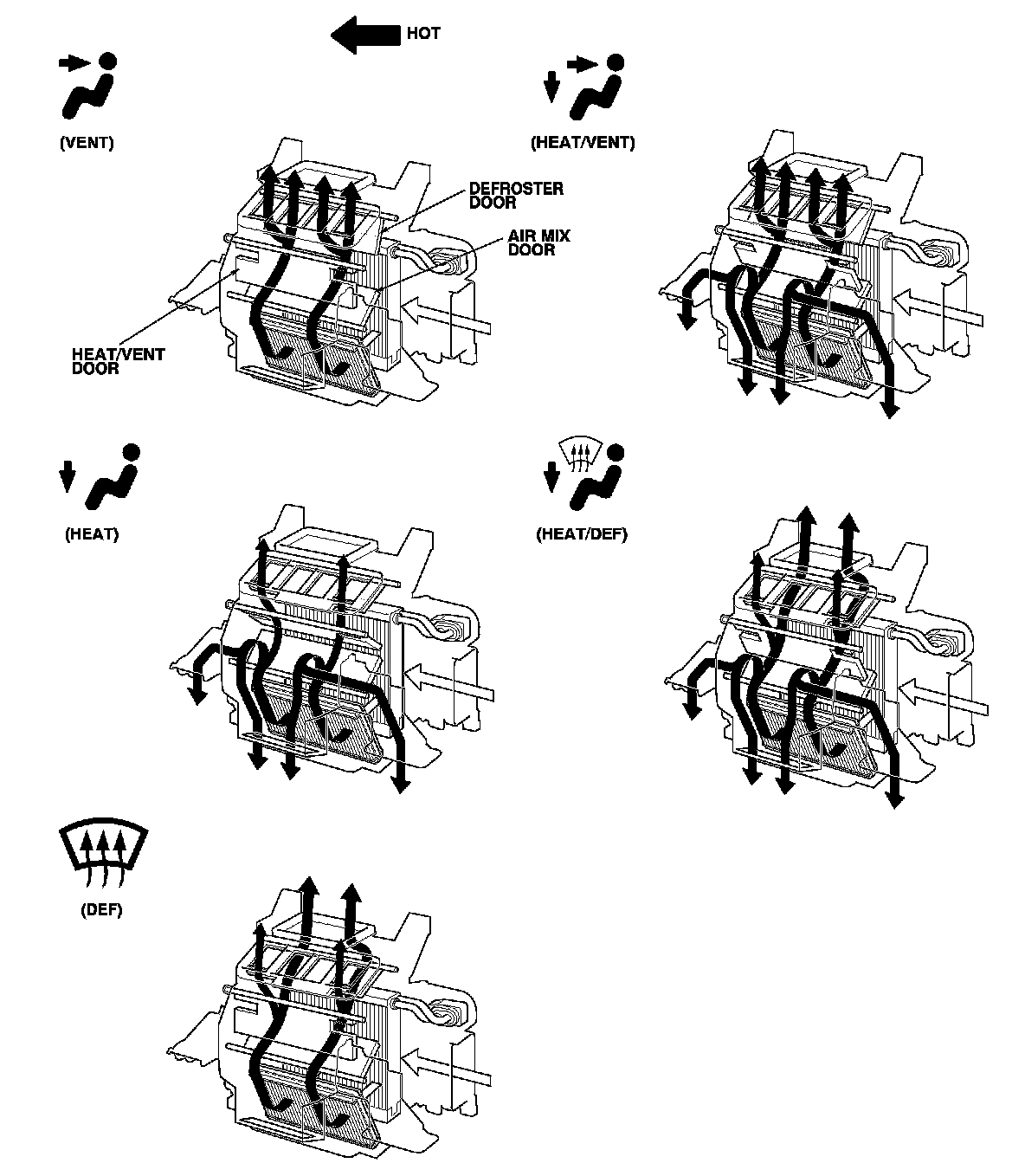

Heating Door Positions

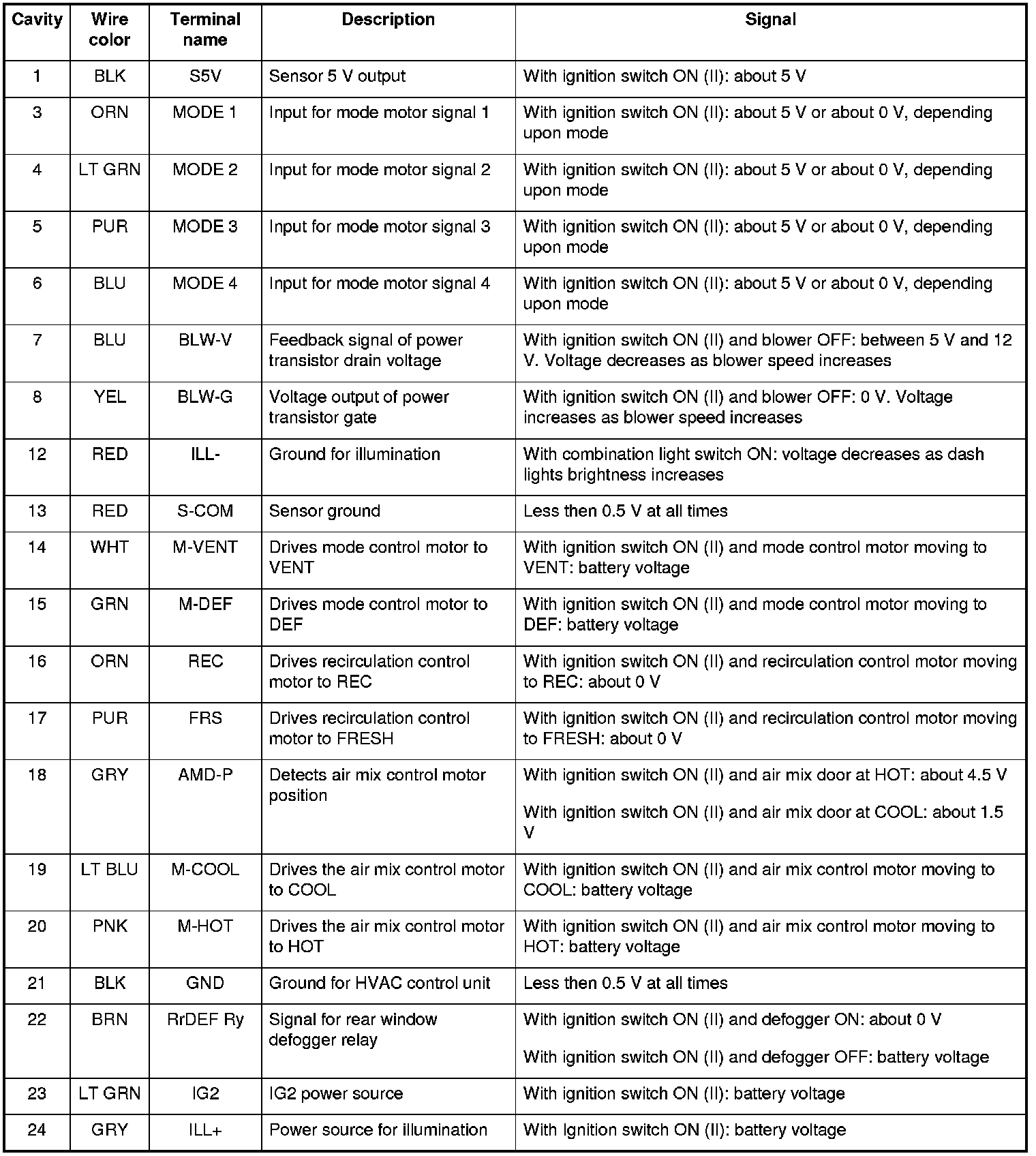

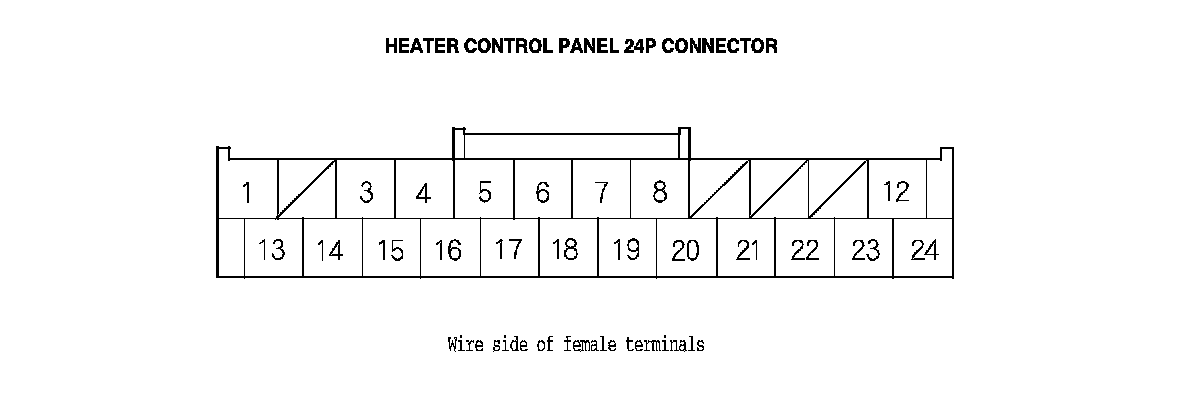

Heater Control Panel Inputs and Outputs
