Heater Control Panel Removal/Installation (Without A/C)

Heater Control Panel Removal/Installation

1. Remove the center panel;
- '09 model Audio Unit Removal/Installation (Without Navigation, With Audio)

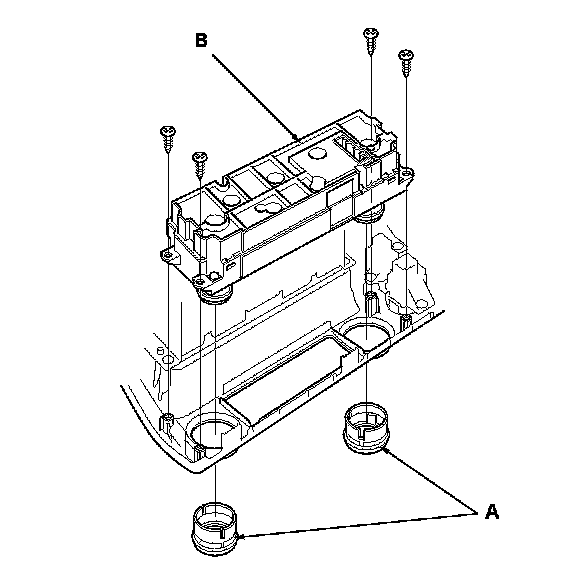

2. Remove the dials (A), the self-tapping screws, and the heater control panel (B).

3. Install the control panel in the reverse order of removal. After installation, operate the various functions to make sure they work properly.

4. Run the self-diagnosis function to confirm that there are no problems in the system. How To Troubleshoot The Heating System (Without A/C)
