HVAC Control Unit Removal/Installation (With A/C)

HVAC Control Unit Removal/Installation

1. Remove the center panel.
- With navigation system
- '09 model Service and Repair

- Without navigation system
- '09 model Audio Unit Removal/Installation (Without Navigation, With Audio)

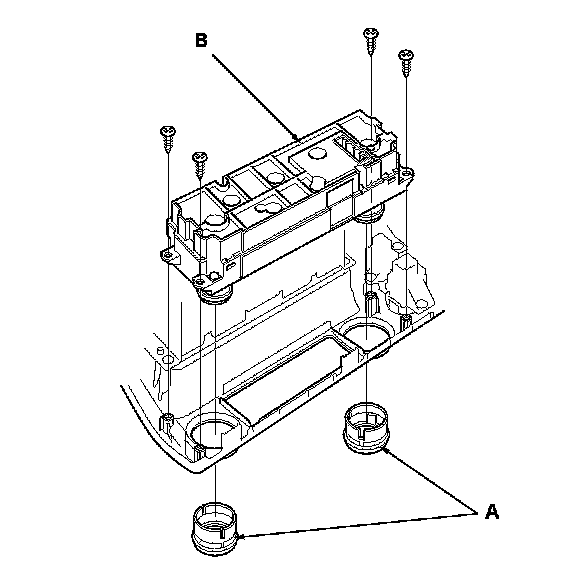

2. Remove the dials (A), the self-tapping screws, and the HVAC control unit (B).

3. Install the control unit in the reverse order of removal. After installation, operate the various functions to make sure they work properly.

4. Run the self-diagnostic function to confirm that there are no problems in the system. How To Troubleshoot The Heating and A/C Systems (With A/C)
