Oil Cooler: Service and Repair

Engine Oil Cooler Replacement

1. Remove the oil filter. Service and Repair

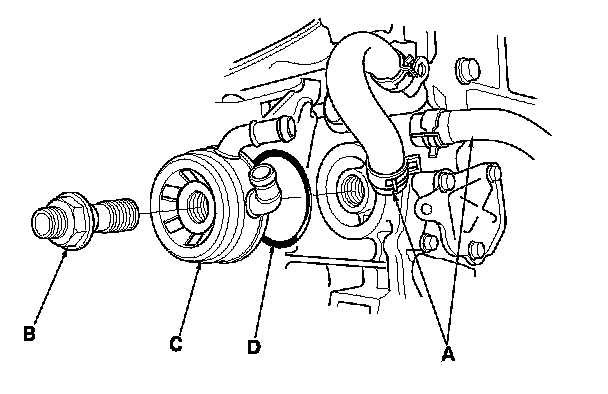

2. Disconnect the oil cooler bypass hoses (A) and remove the oil cooler center bolt (B), then remove the oil cooler (C).

3. Install the oil cooler using a new O-ring (D). Tighten the oil cooler center bolt to 74 N-m (7.5 kgf-m, 54 lbf-ft).

4. Connect the oil cooler bypass hoses.

5. Install the oil filter. Service and Repair
