CMP Pulse Plate A Replacement

CMP Pulse Plate A Replacement

1. Remove the cylinder head cover. Cylinder Head Cover Removal

2. Remove camshaft position (CMP) sensor A. CMP Sensor A Replacement

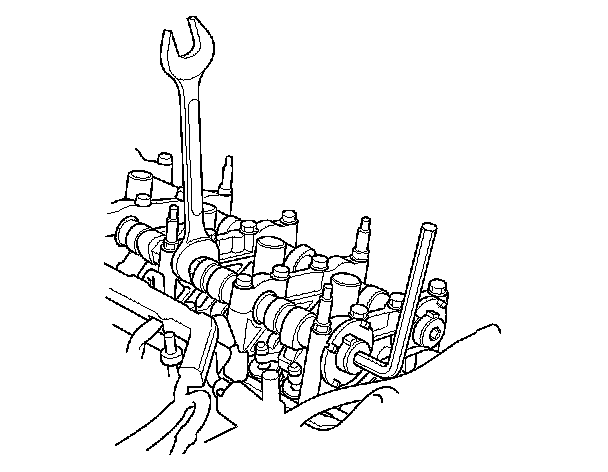

3. Hold the intake camshaft with a 27 mm open-end wrench, then loosen the bolt.

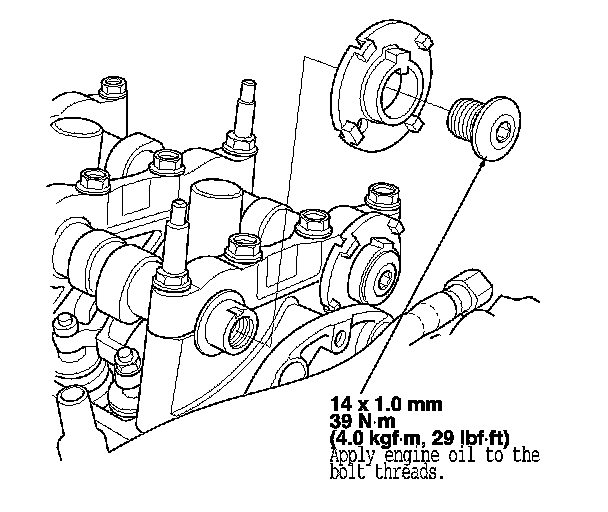

4. Remove CMP pulse plate A.

5. Install CMP pulse plate A in the reverse order of removal.
