Connecting Rod and Crankshaft End Play Inspection

Connecting Rod and Crankshaft End Play Inspection

1. Remove the oil pump. Service and Repair

2. Remove the baffle plates. Crankshaft and Piston Removal

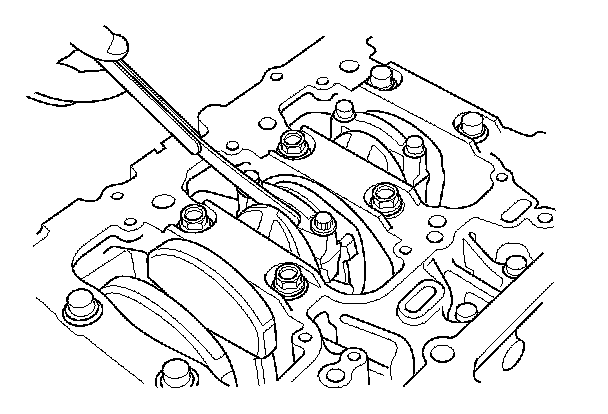

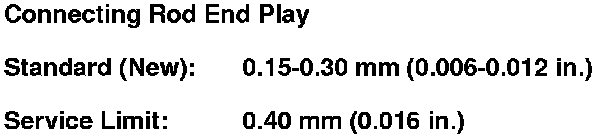

3. Measure the connecting rod end play with a feeler gauge between the connecting rod and the crankshaft.





4. If the connecting rod end play is beyond the service limit, install a new connecting rod, and recheck. If it is still beyond the service limit; replace the crankshaft. Crankshaft and Piston Removal

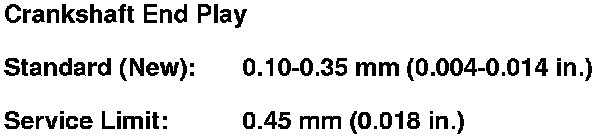

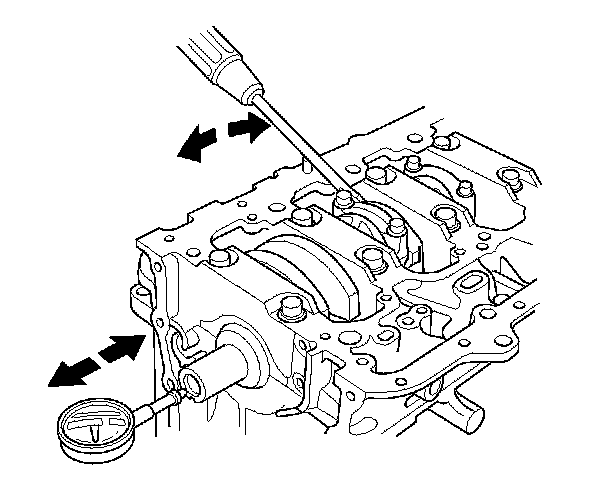

5. Push the crankshaft firmly away from the dial indicator, and zero the dial against the end of the crankshaft. Then pull the crankshaft firmly back toward the indicator; the dial reading should not exceed the service limit.





6. If the end play is beyond the service limit, replace the thrust washers and recheck If it is still beyond the service limit, replace the crankshaft.. Crankshaft and Piston Removal
