Home >> Honda >> 2009 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Harness >> Rear Wire Harness (Right branch) and Rear Window Defogger Ground Wire Connector and Harness Locations (4-Door)

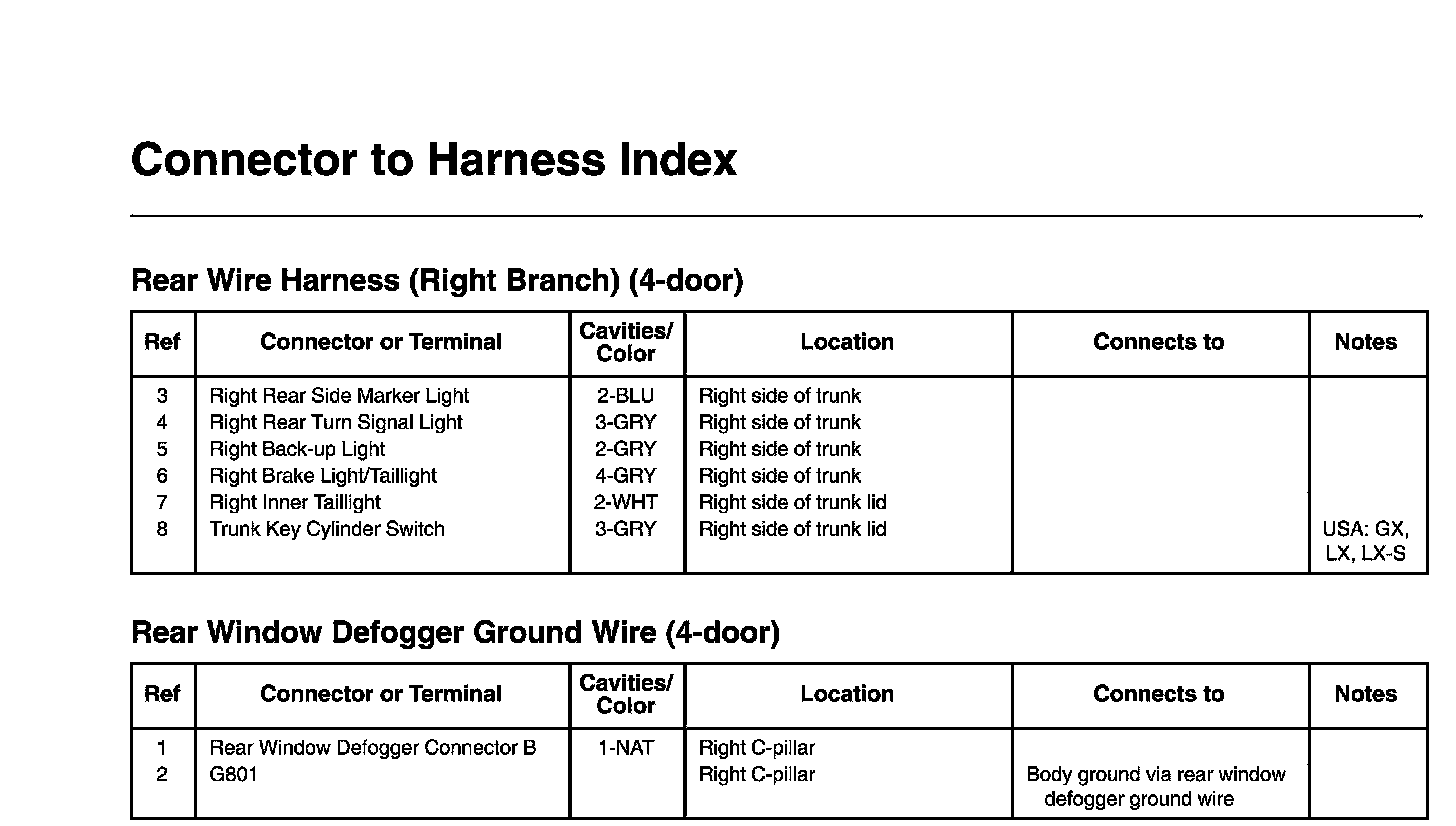

Rear Wire Harness (Right branch) and Rear Window Defogger Ground Wire Connector and Harness Locations (4-Door)
