Home >> Honda >> 2009 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Harness >> Rear Wire Harness (Right Branch) and Rear Window Defogger Ground Wire Connector and Harness Locations (2-Door)

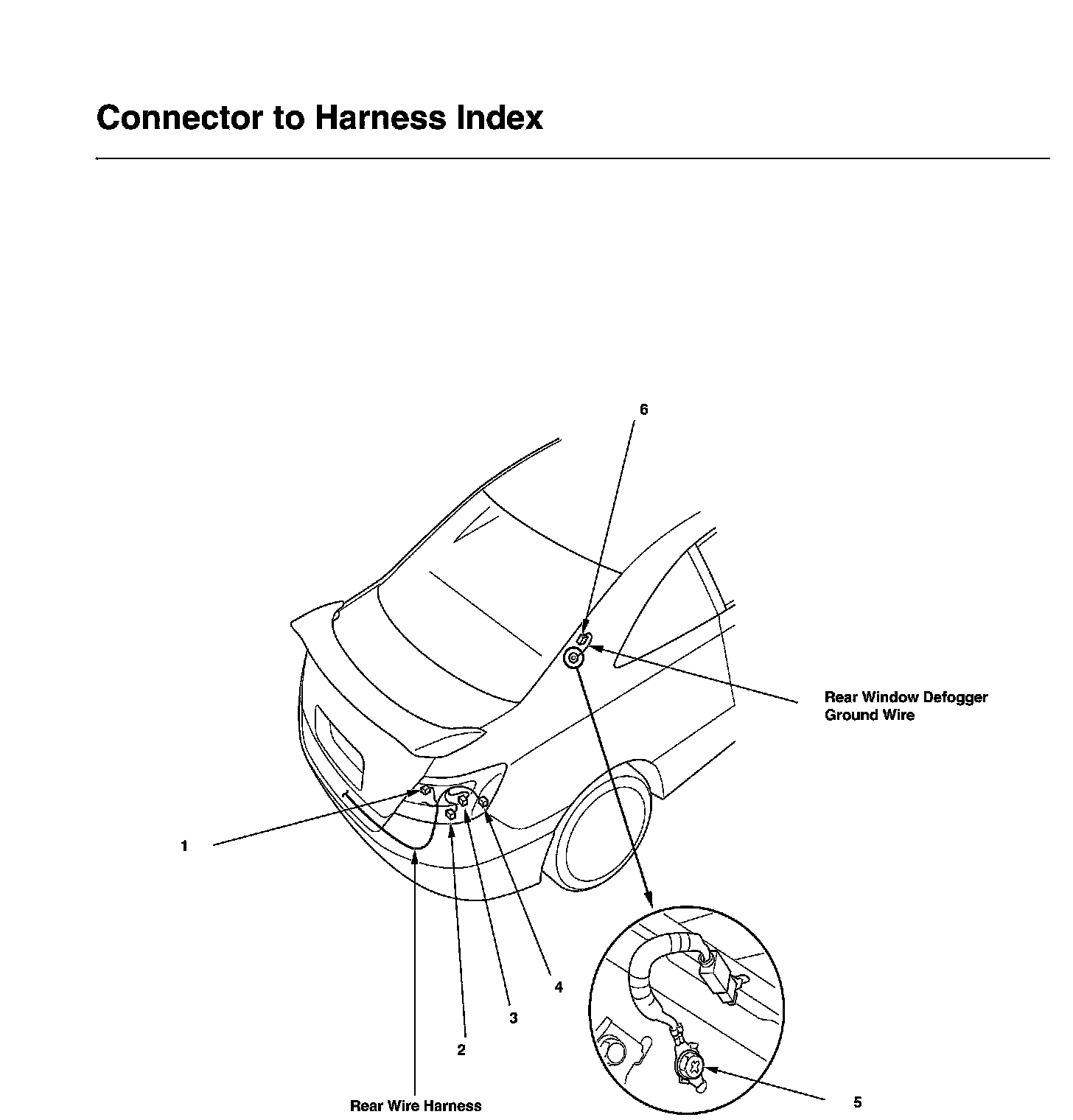

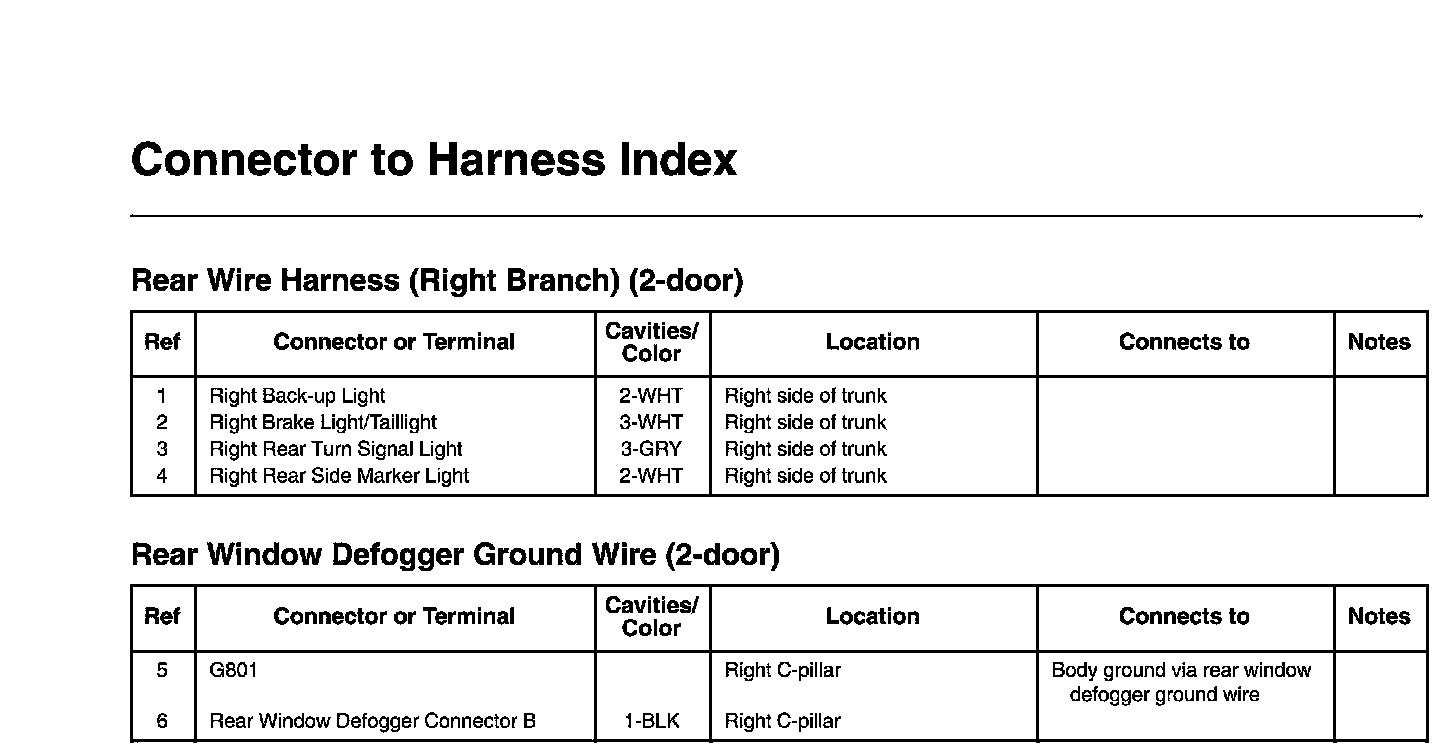

Rear Wire Harness (Right Branch) and Rear Window Defogger Ground Wire Connector and Harness Locations (2-Door)
