Home >> Honda >> 2009 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Harness >> Dashboard Wire Harness (View of Middle) and AM/FM Antenna Sub-Lead Connector and Harness Locations

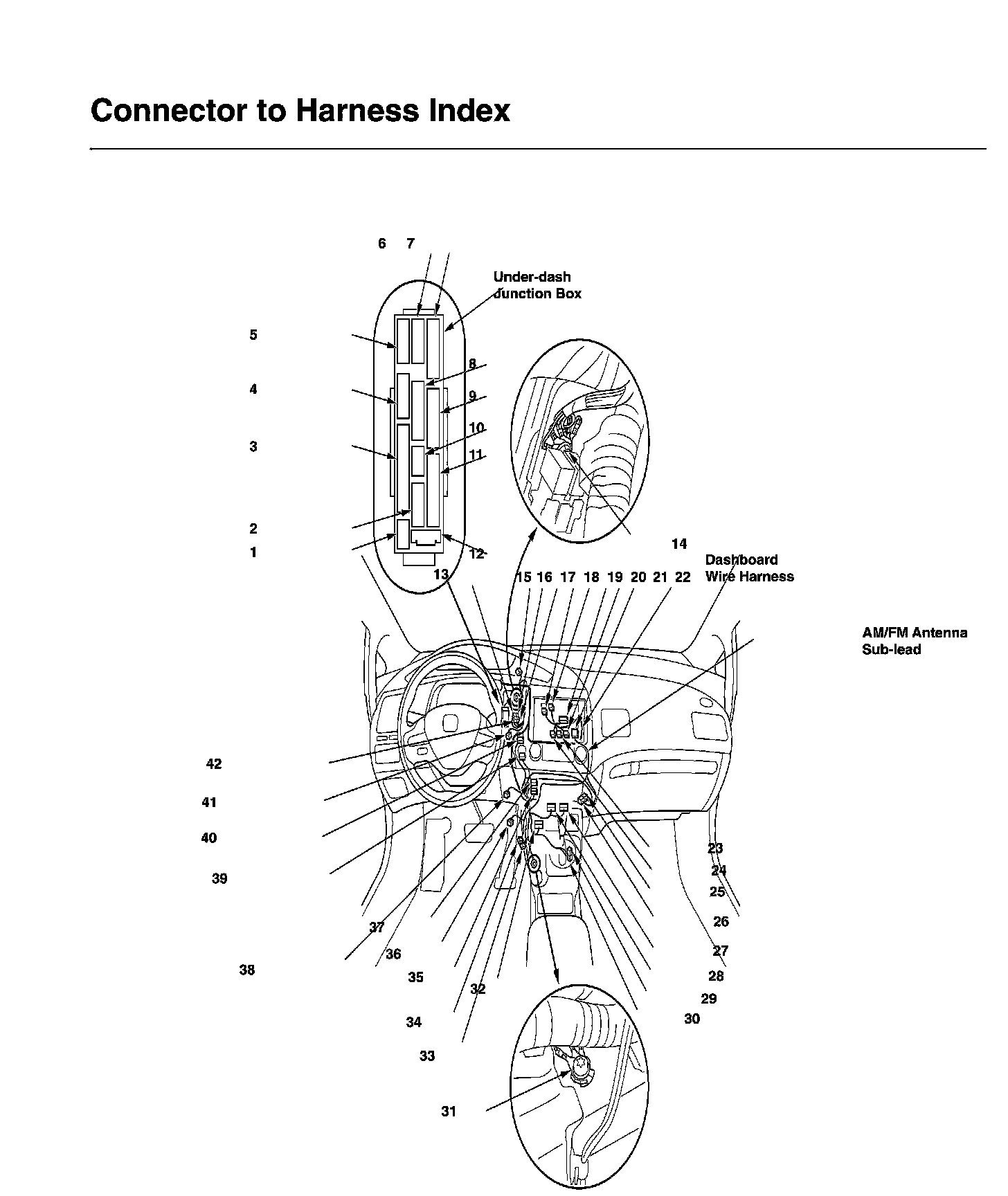

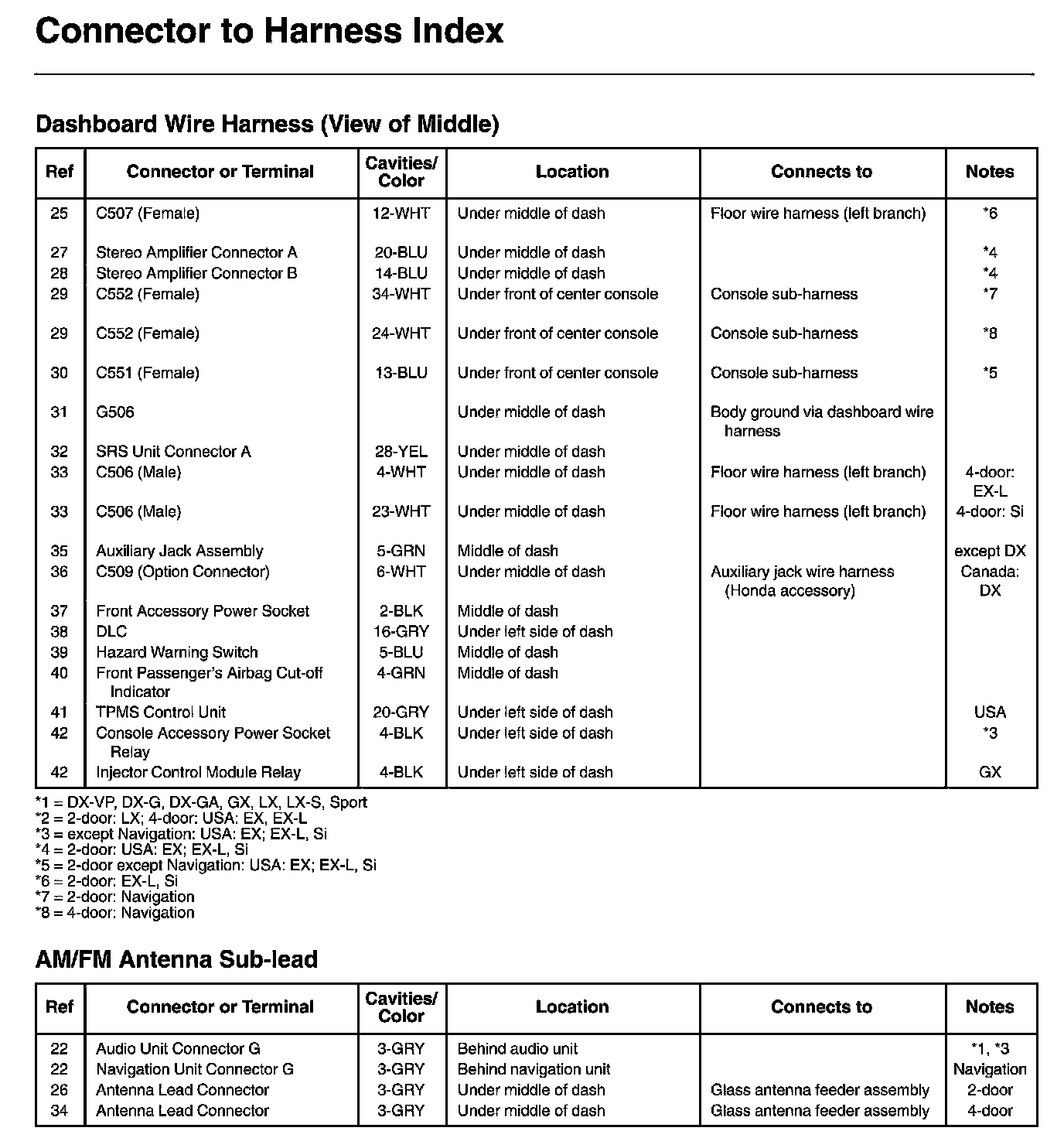

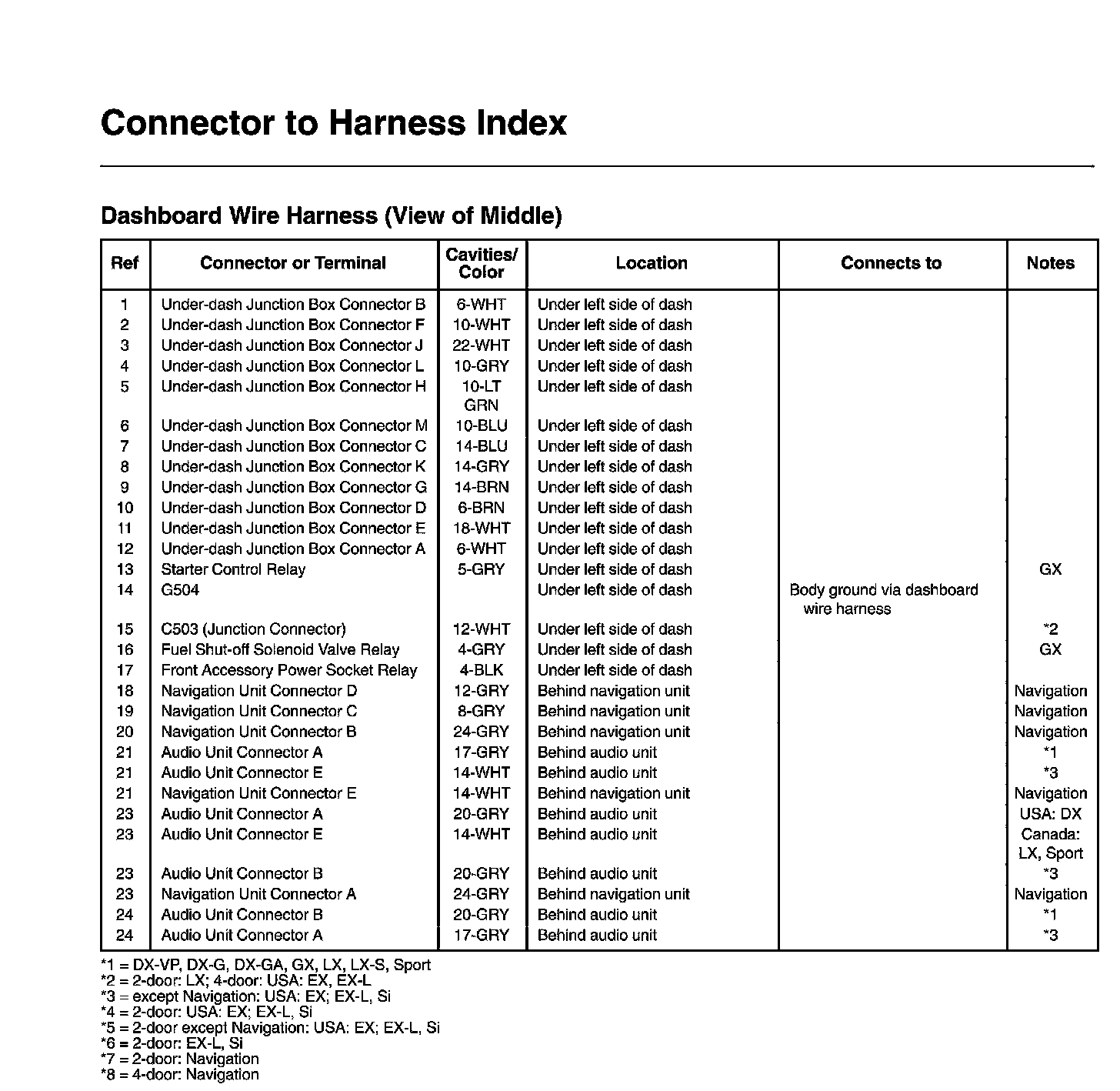

Dashboard Wire Harness (View of Middle) and AM/FM Antenna Sub-Lead Connector and Harness Locations
