Diagram Set 130 (Power Door Locks/Keyless Entry/Security System)

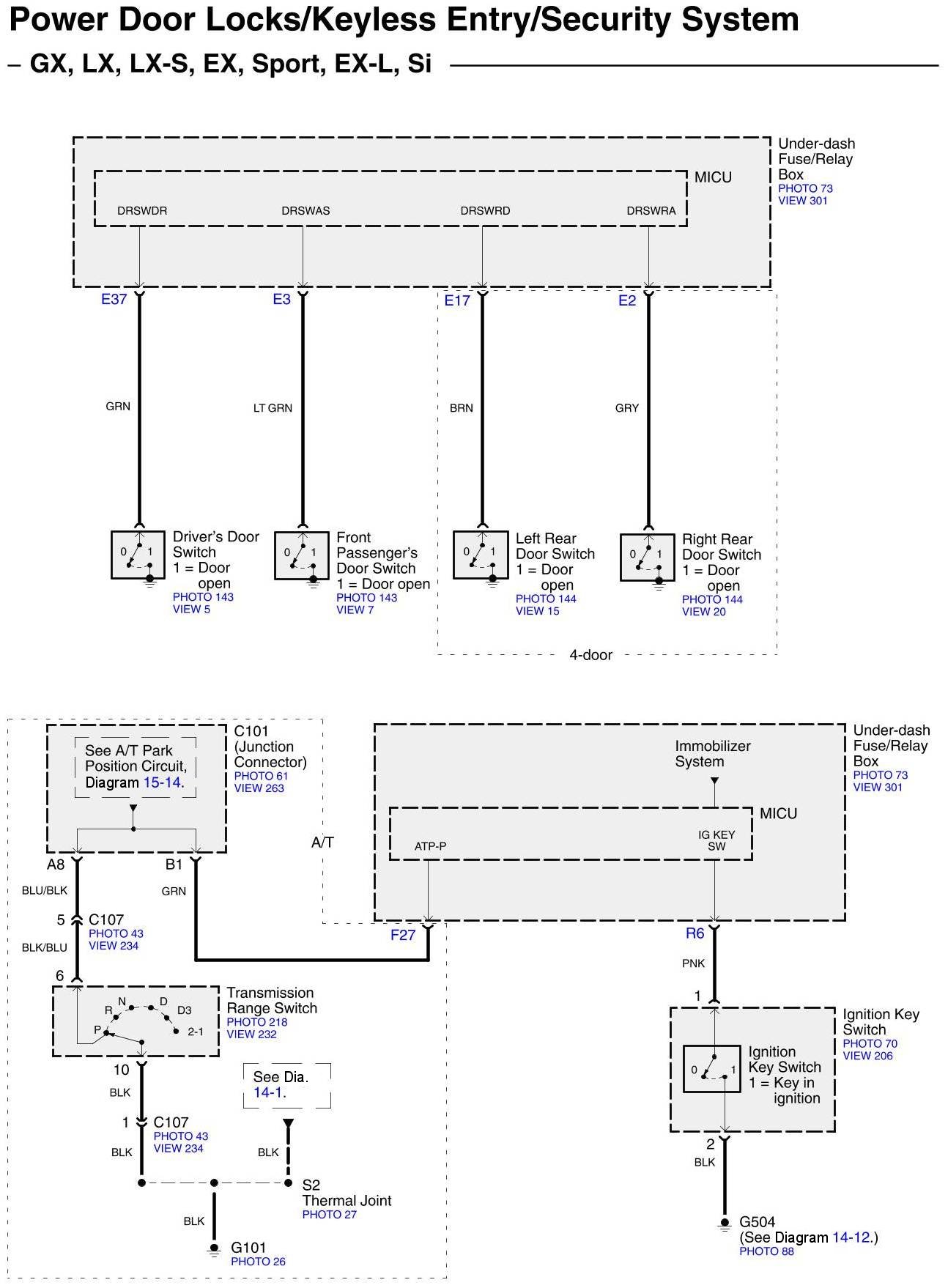

Diagram 130-7:

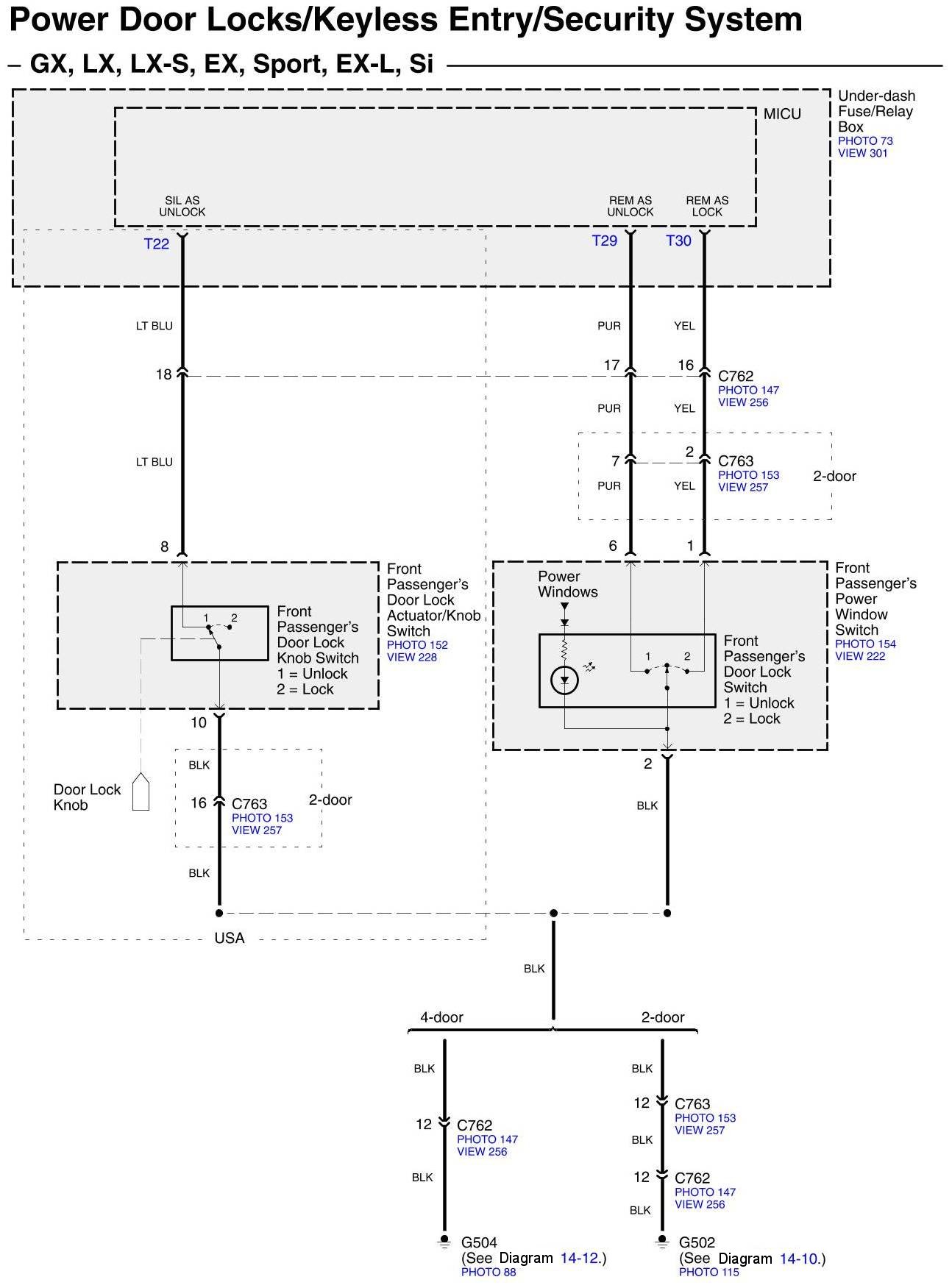

Diagram 130-8:

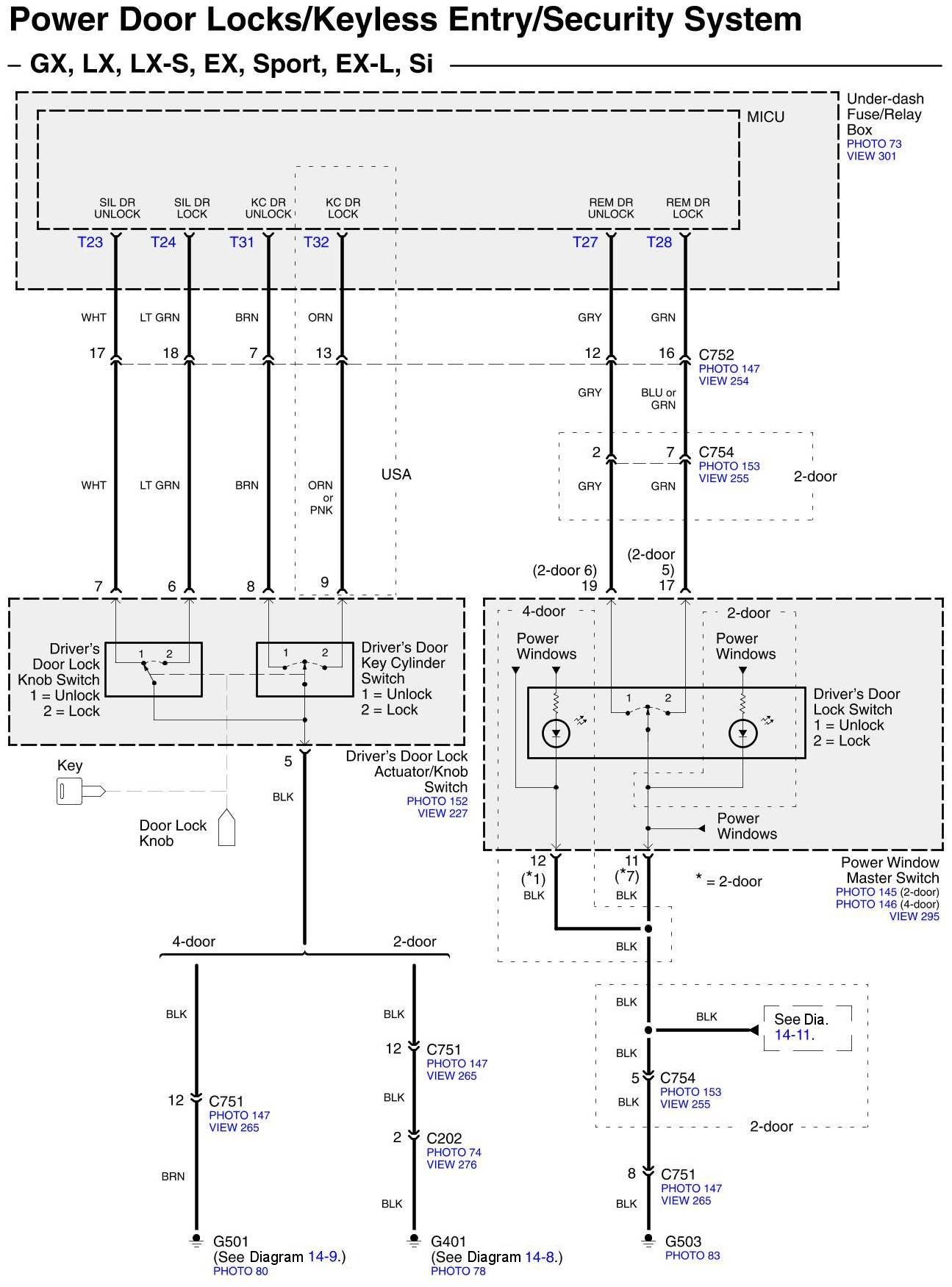

Diagram 130-9:

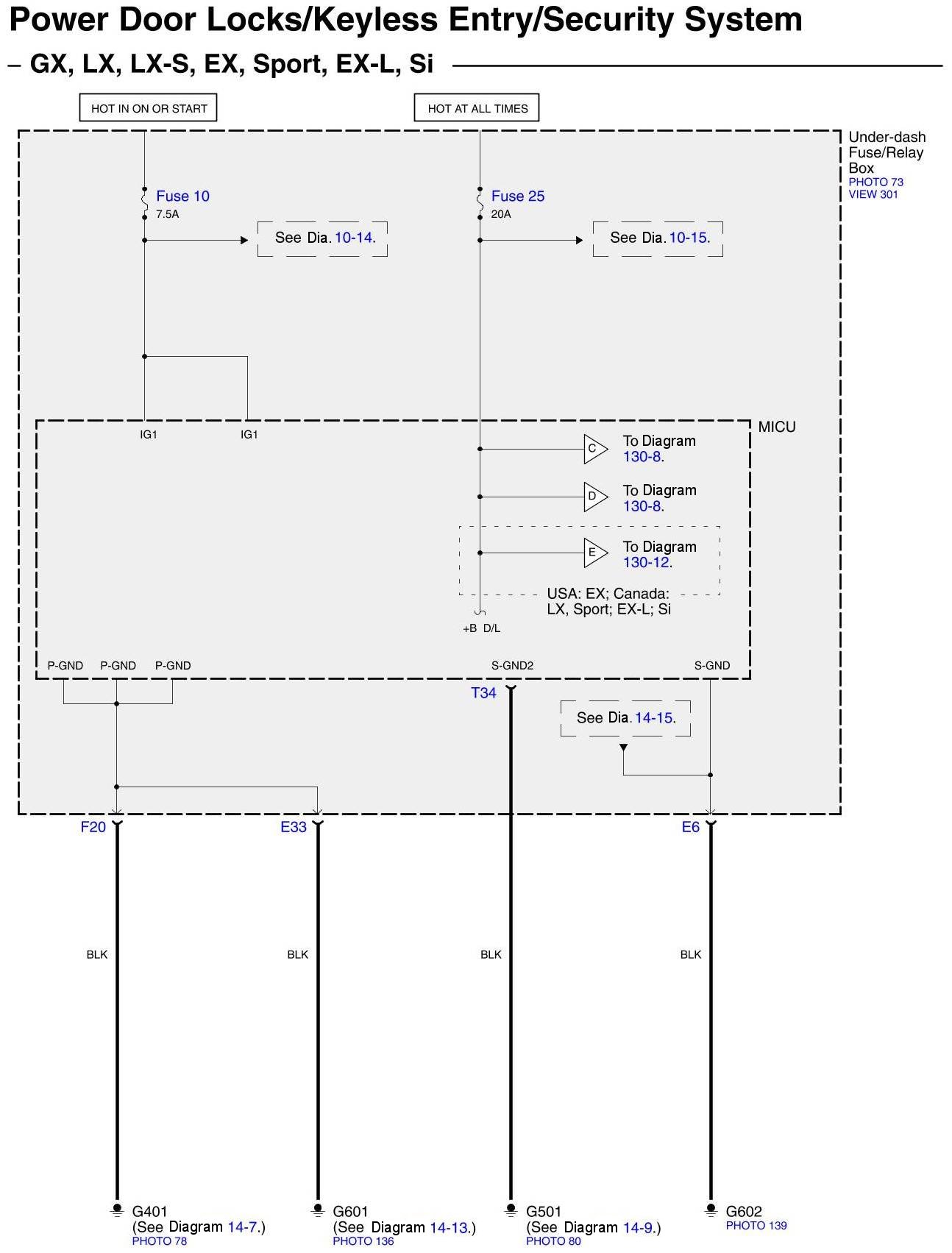

Diagram 130-10:

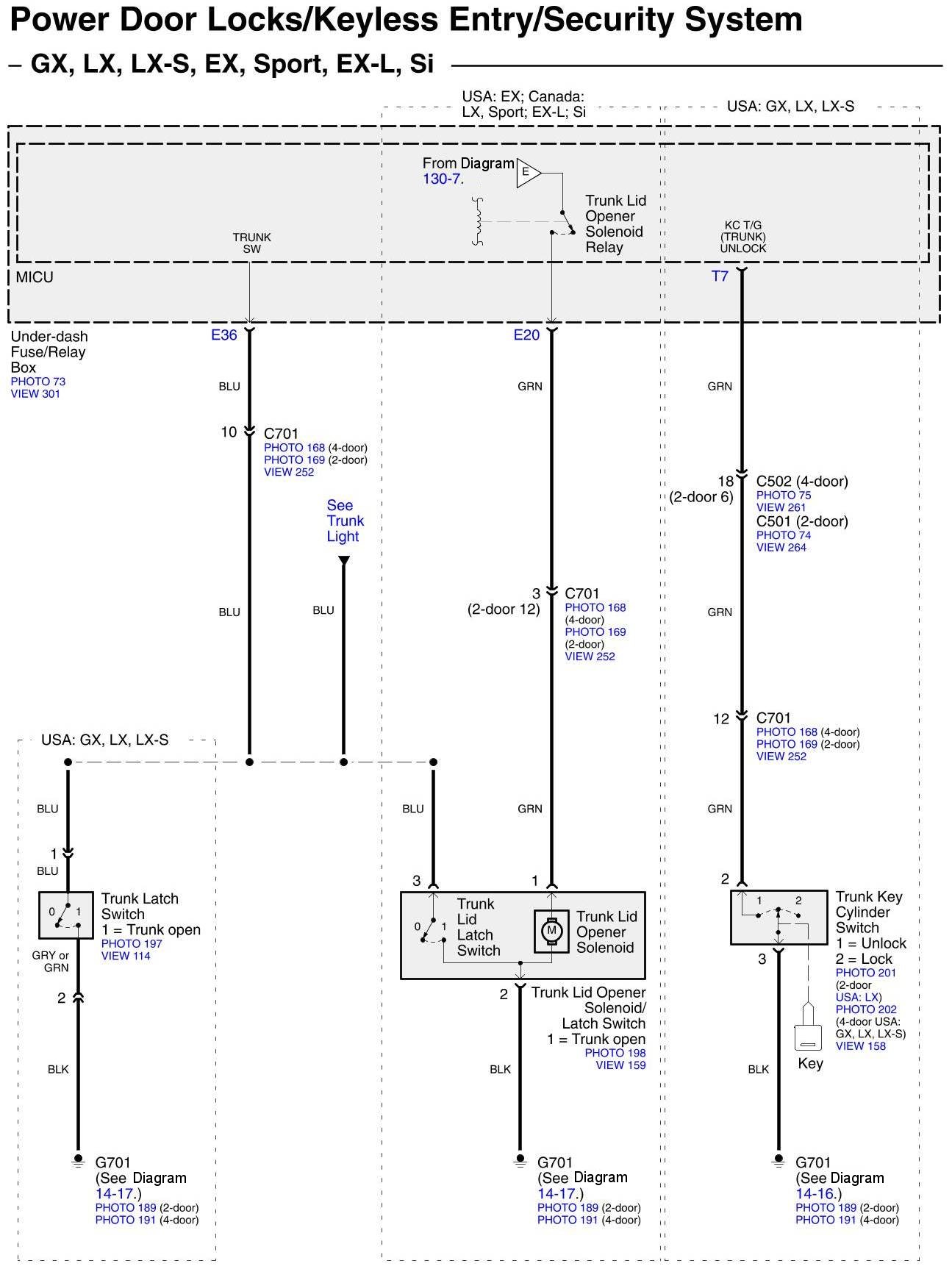

Diagram 130-11:

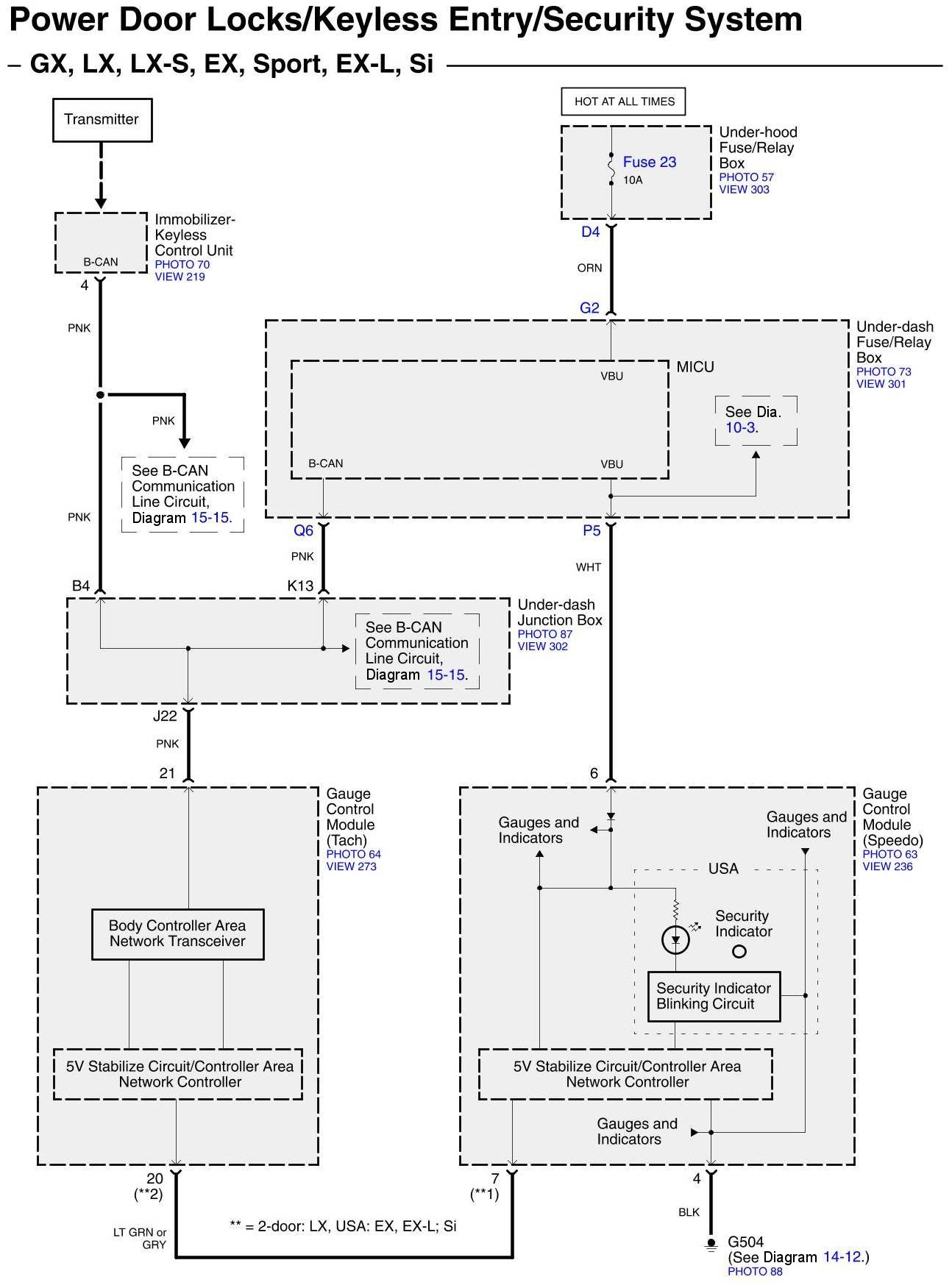

Diagram 130-12:

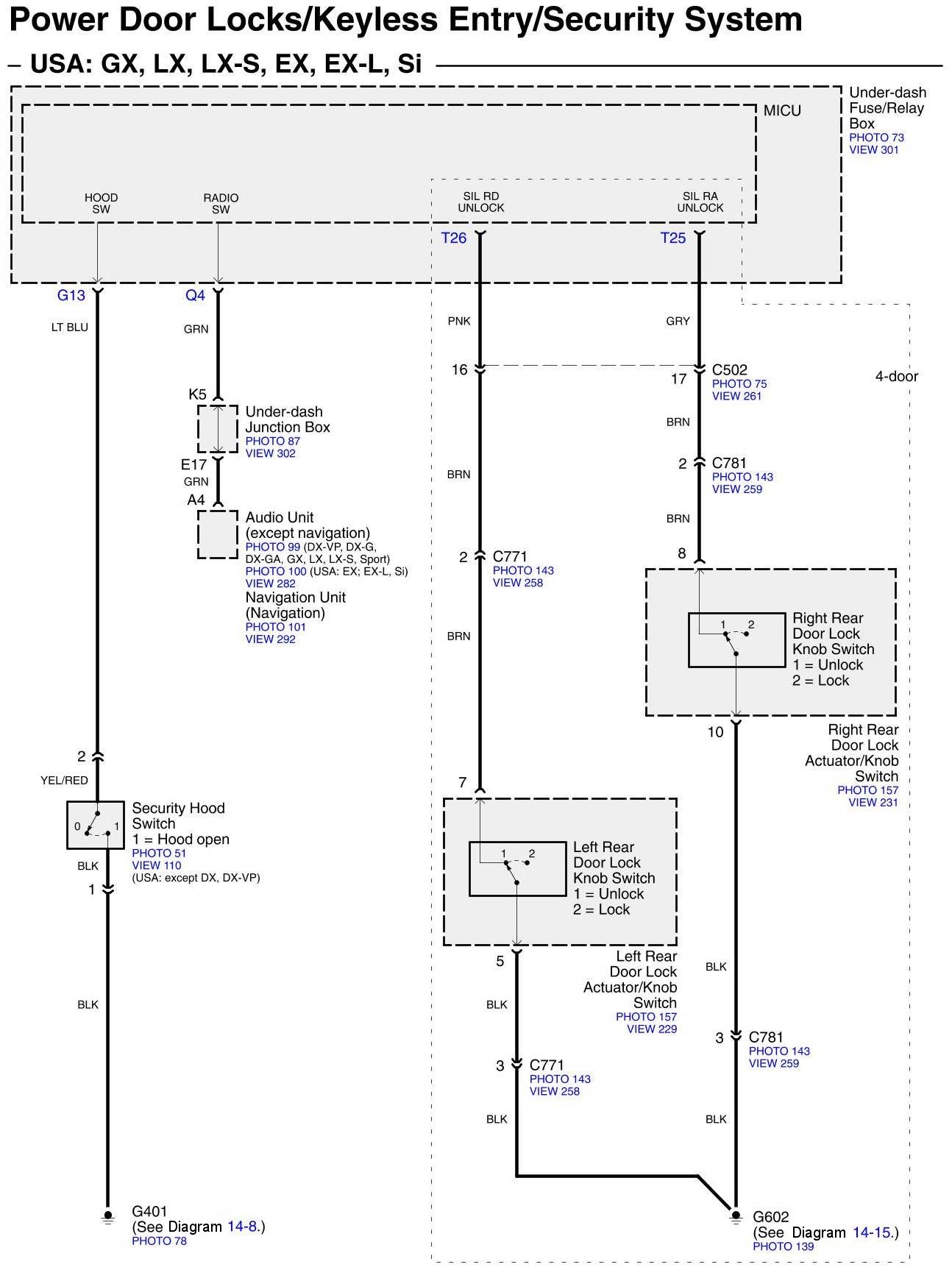

Diagram 130-13:

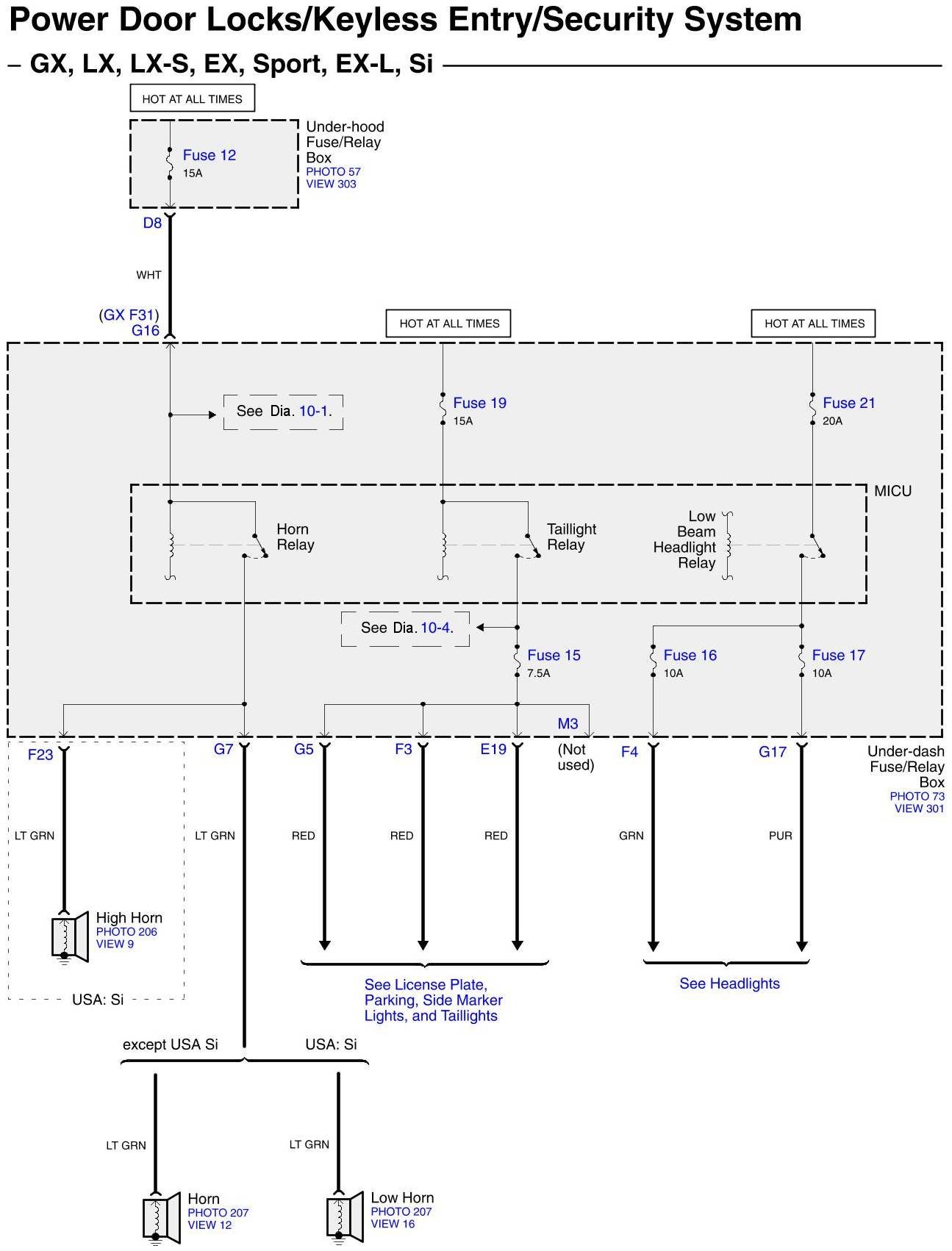

Diagram 130-14:

Diagram 130-15:

Diagrams: Other diagrams referred to by number (See Diagram ##-#, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found at Locations by Photo Number. Locations By Photo Number

Connector Views: Connector terminal views (references to VIEWS) referred to within these diagrams can be found at Connector Views by View Number. Connector Views By View Number
