Home >> Honda >> 2009 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 294 Power Window Cut Relay and Start Relay Connector View (Honda Accessory: A/T)

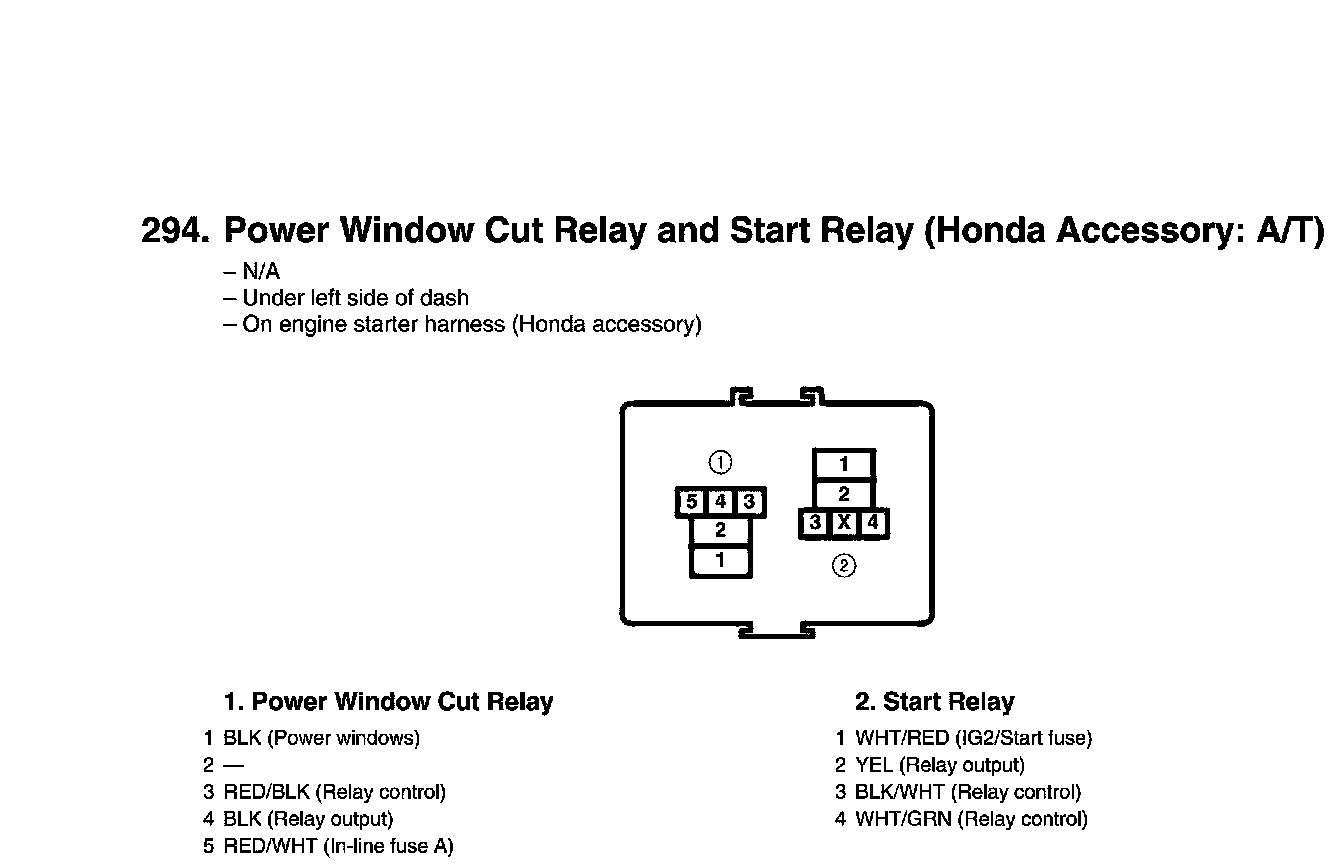

View 294 Power Window Cut Relay and Start Relay Connector View (Honda Accessory: A/T)
