Home >> Honda >> 2009 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 282 Audio Unit Connector View (Except Navigation)

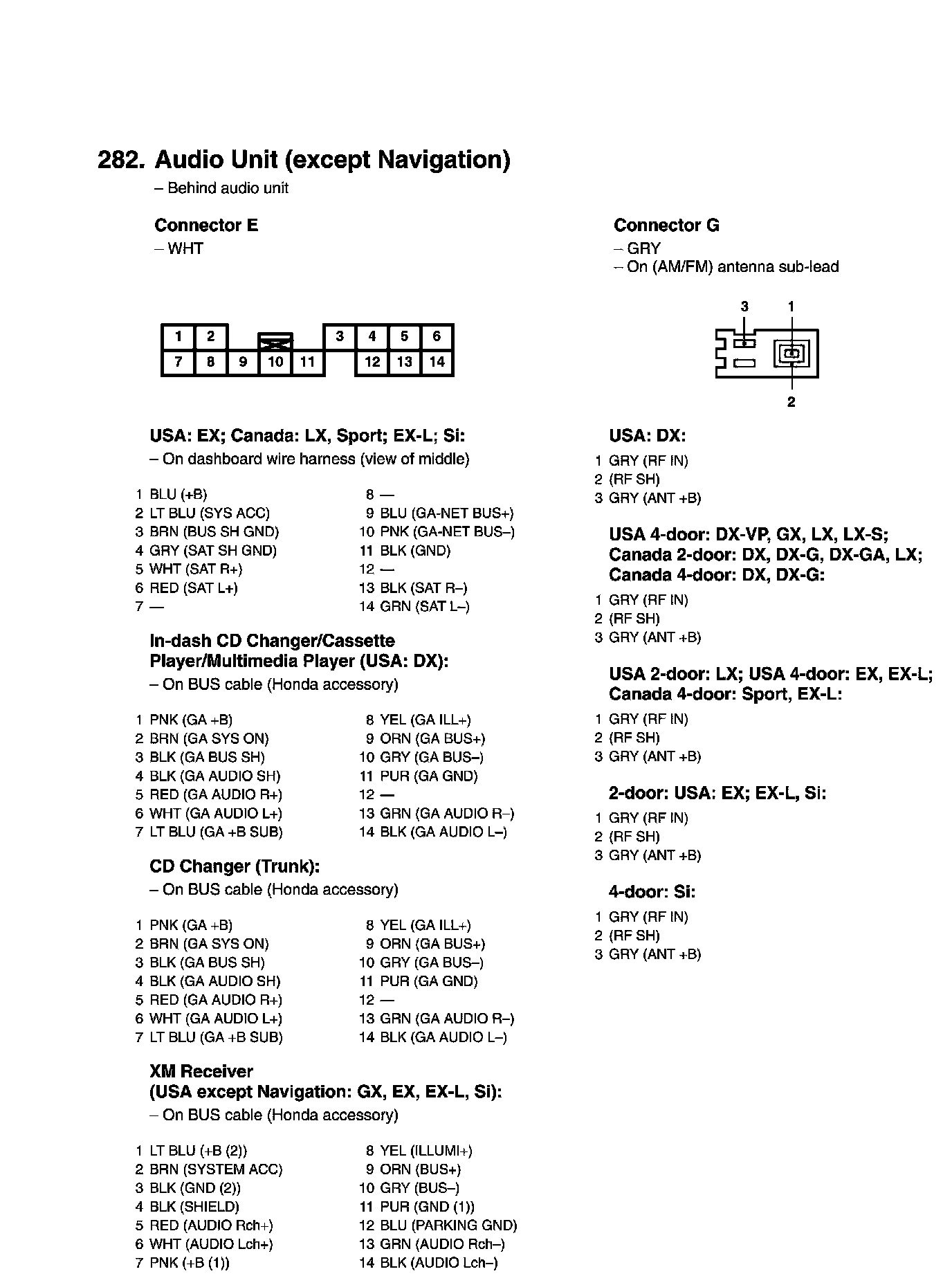

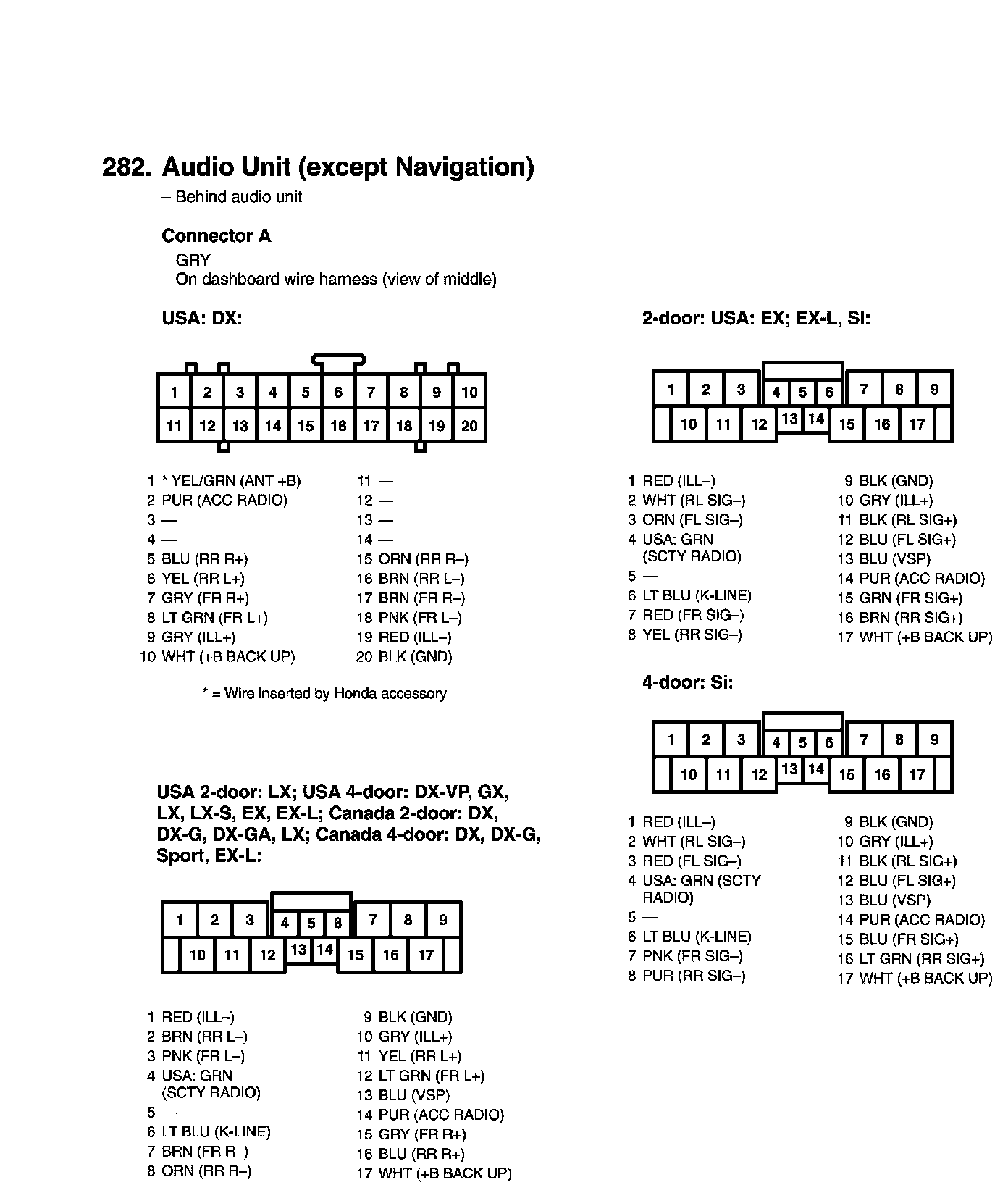

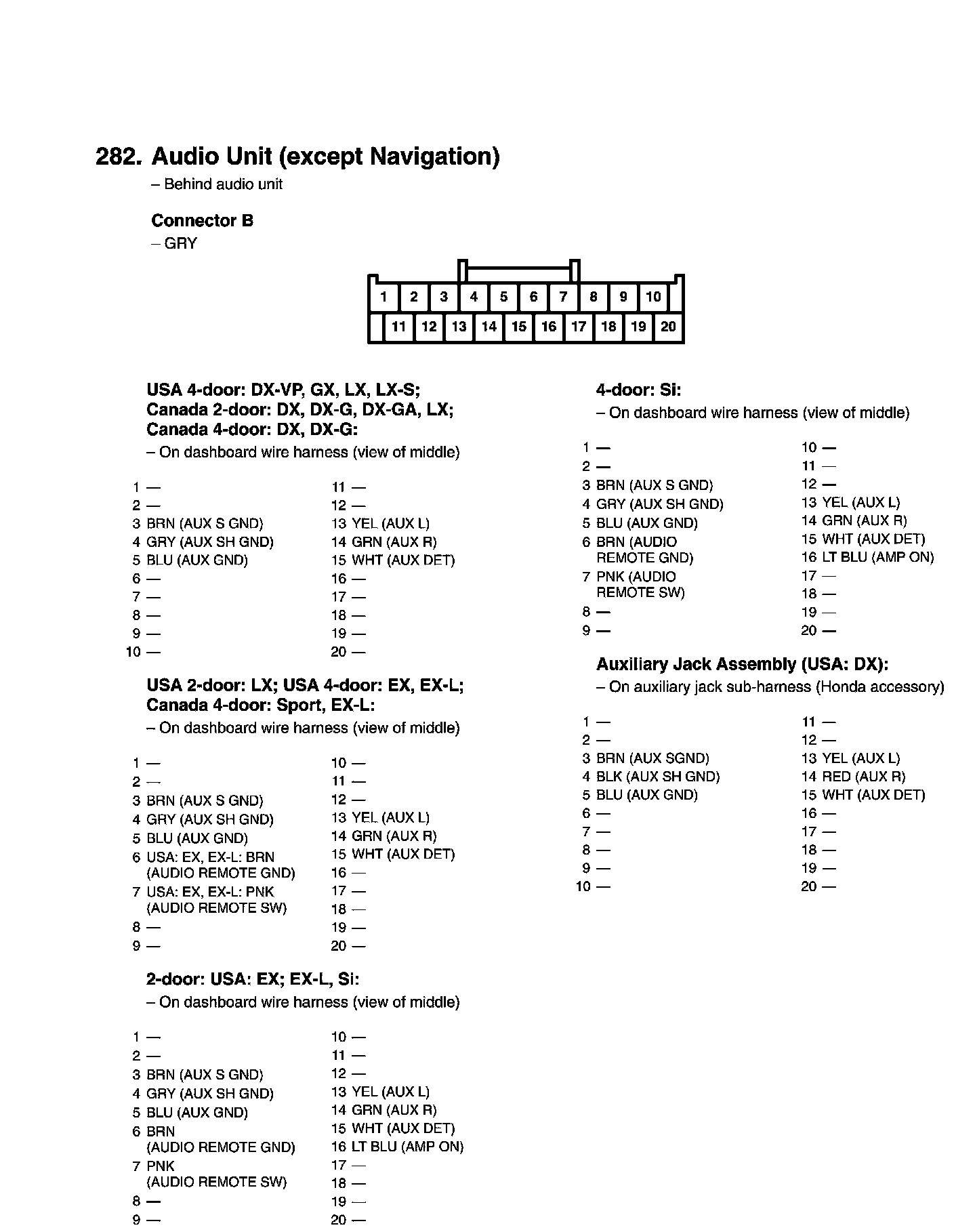

View 282 Audio Unit Connector View (Except Navigation)
