Home >> Honda >> 2009 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 260 TPMS Control Unit Connector View (USA)

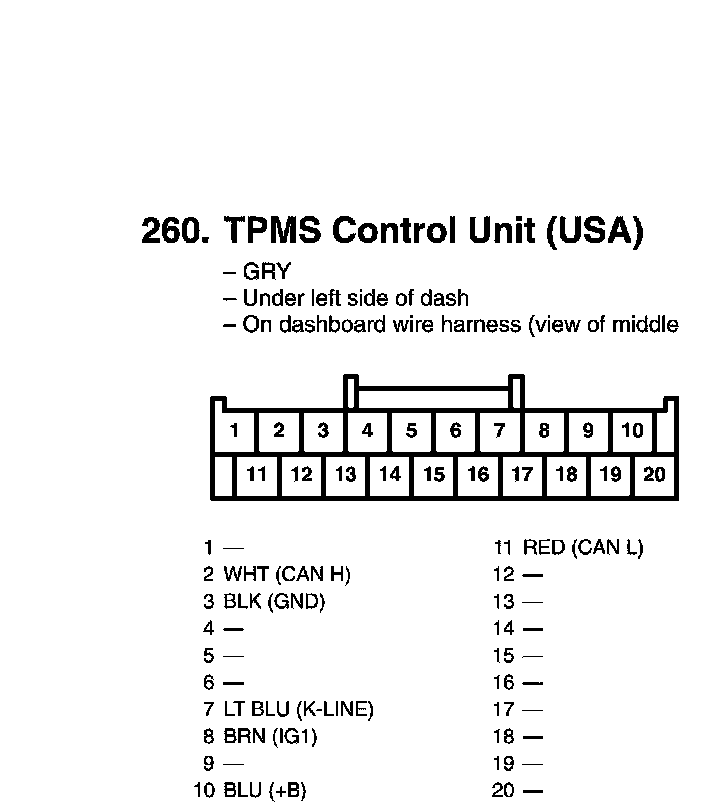

View 260 TPMS Control Unit Connector View (USA)
