Home >> Honda >> 2009 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By Connector Number >> C551 Connector View (2-Door except Navigation)

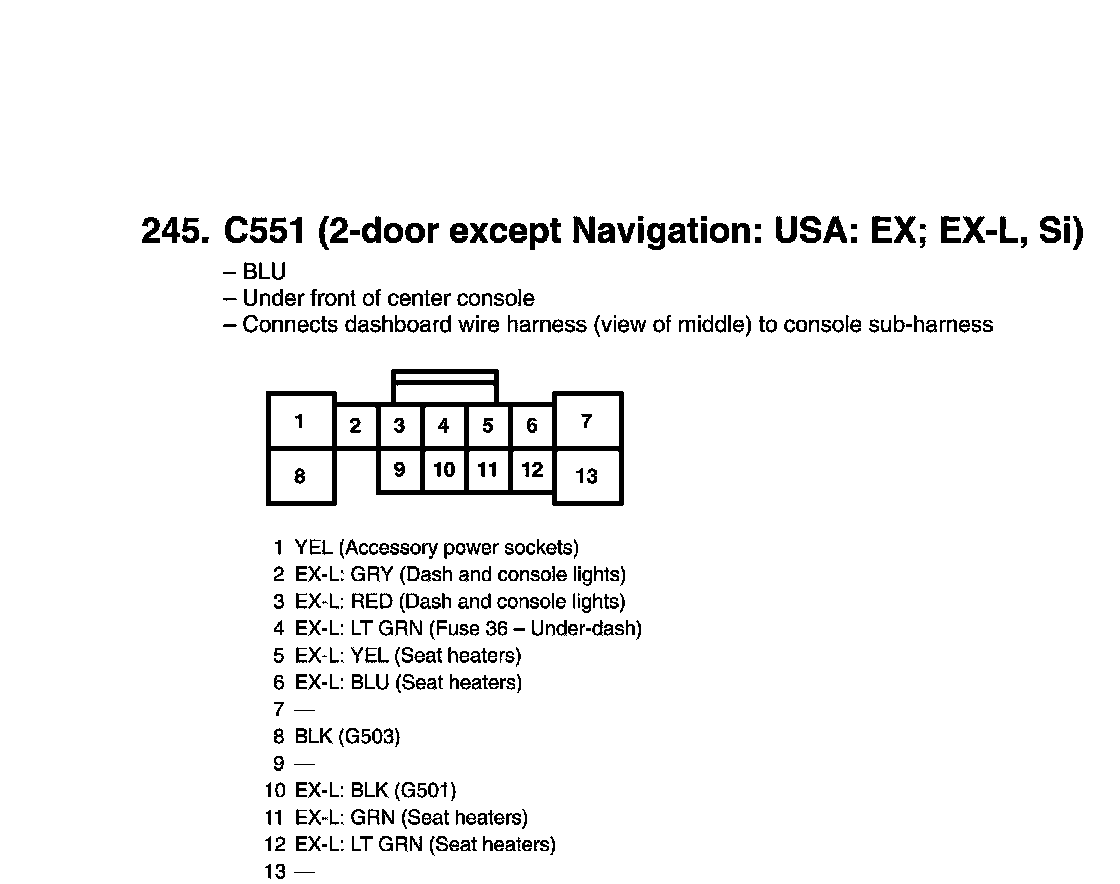

C551 Connector View (2-Door except Navigation)
