Home >> Honda >> 2009 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Auxiliary Power Outlet >> Console Accessory Power Socket Relay Or Injector Control Module Relay and Front Accessory Power Socket Relay Connector View

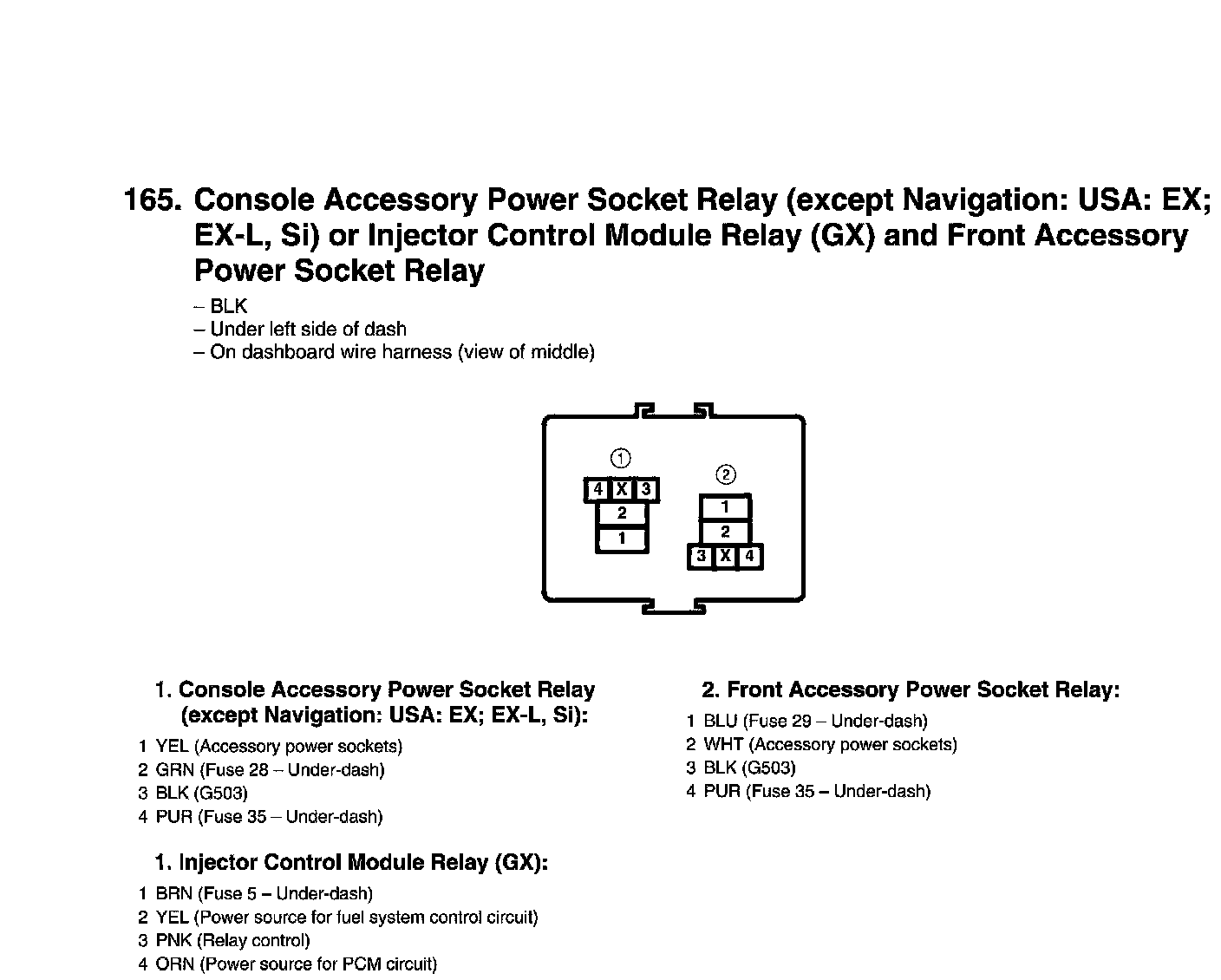

Console Accessory Power Socket Relay Or Injector Control Module Relay and Front Accessory Power Socket Relay Connector View
