Moonroof Switch Test/Replacement (With Moonroof)

Moonroof Switch Test/Replacement

'08-09 models

1. Remove the front individual map lights. Front Individual Map Light Test/Replacement (With Moonroof)

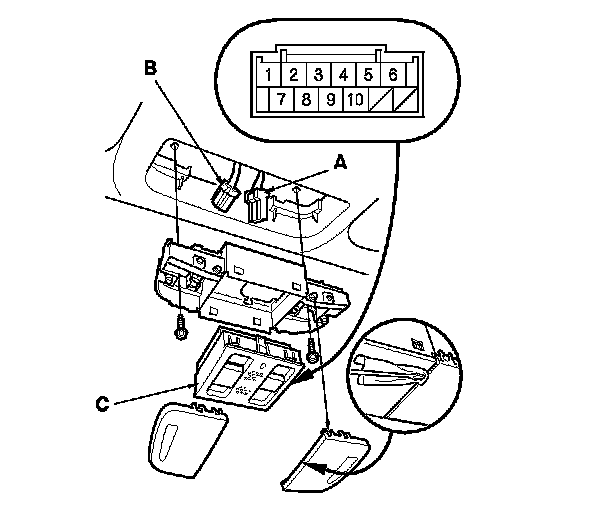

2. Disconnect the moonroof switch 12P connector (A) and map light switch 3P connector (B).

3. Remove the moonroof switch (C).

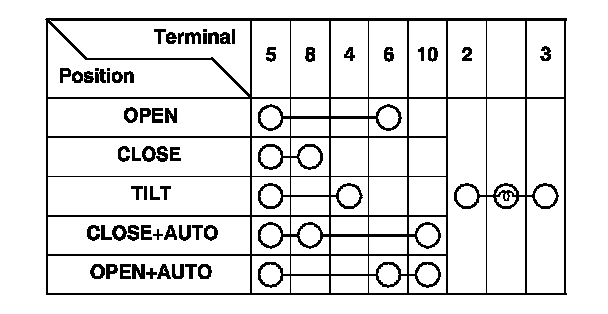

4. Check for continuity between the terminals in each switch position according to the table.

5. If the continuity check is not as specified, replace the switch.

6. Install the moonroof switch and light in the reverse order of removal.
