Sunroof / Moonroof: Service and Repair

Moonroof Glass Replacement

1. Close the glass fully.

2. Slide the sunshade all the way back.

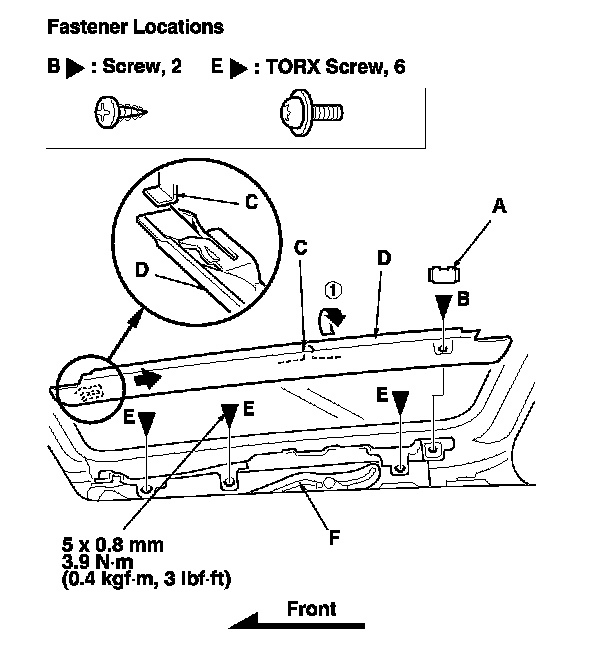

3. Pry out the lid (A), remove the screws (B), and release the hooks (C), then remove both bracket covers (D). Remove the screws (E) using a TORX T25 bit from both glass brackets (F).

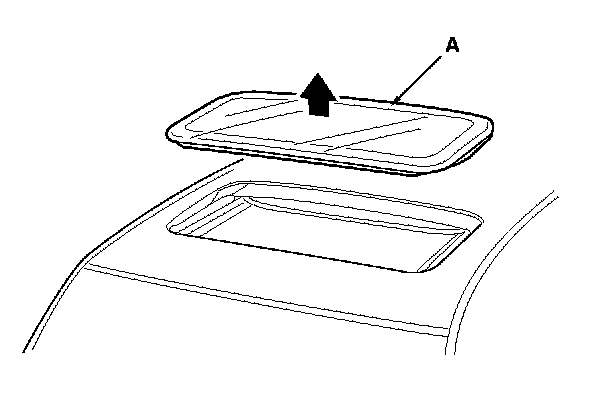

4. Remove the glass (A) by lifting it up. Do not damage the roof panel.

5. Install the glass in the reverse order of removal, and adjust the glass position alignment. Adjustments

6. Reset the moonroof control unit. Programming and Relearning

7. Check for water leaks. Use free-flowing water from a hose without a nozzle. Do not use high-pressure water.
NOTE: It is normal for some water to seep past the moonroof into the moonroof frame, and exit through the drains.
