Home >> Honda >> 2009 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Description and Operation >> How the Power Door Locks/Keyless Entry/Security System Circuit Works

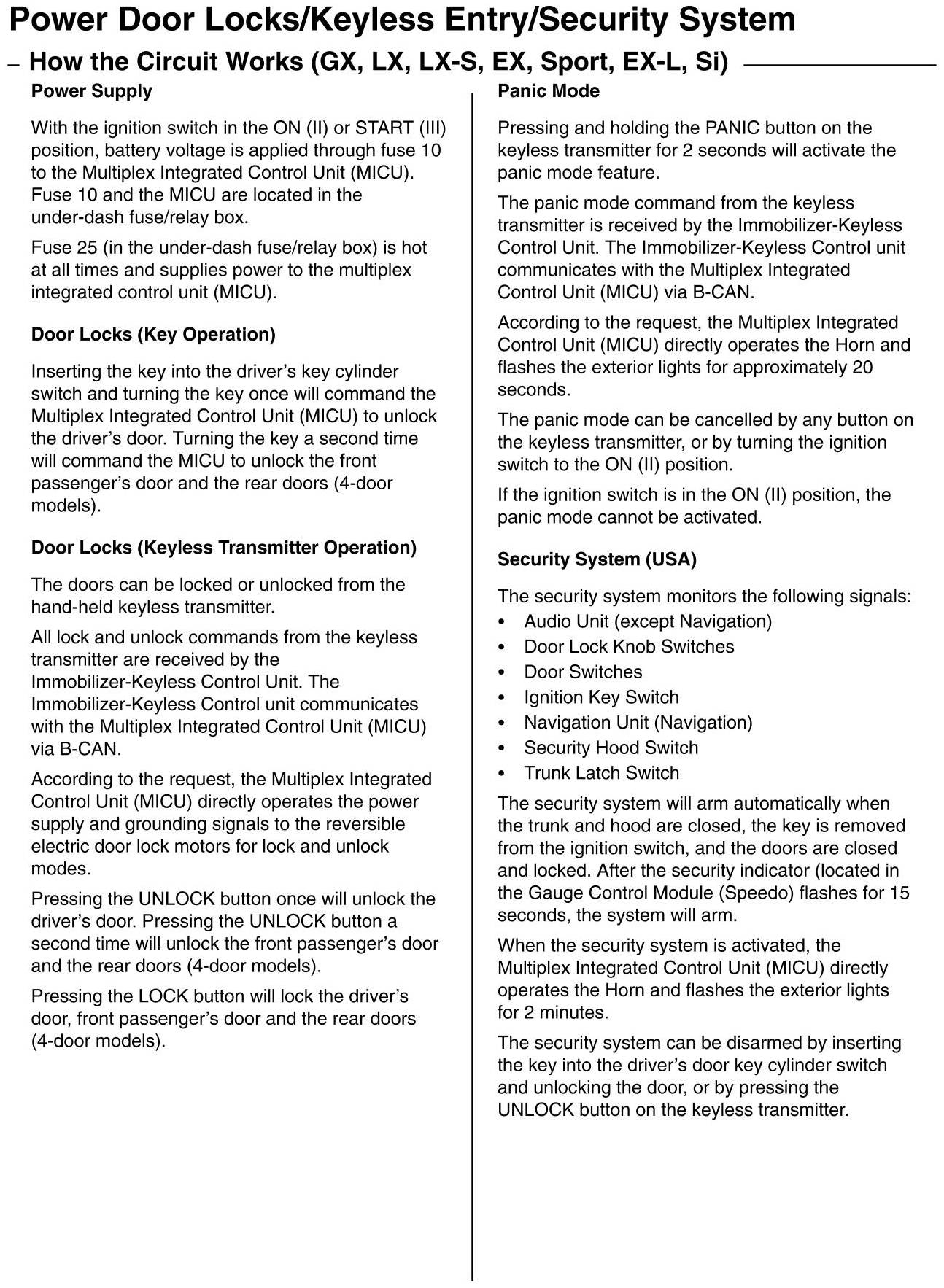

How the Power Door Locks/Keyless Entry/Security System Circuit Works
