A-Pillar Corner Trim Replacement (2-Door)

A-Pillar Corner Trim Replacement

2-door

1. Open the front door.

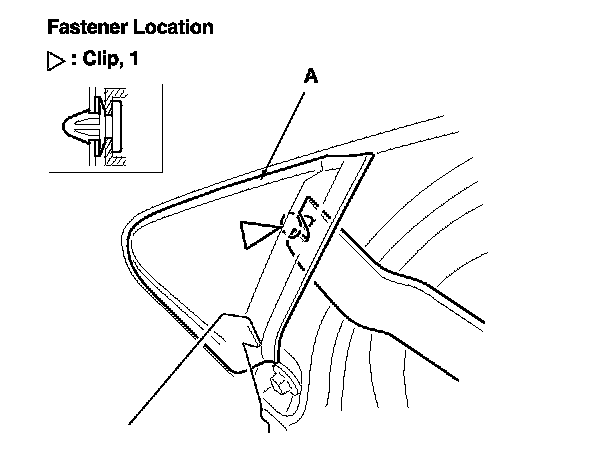

2. Insert an appropriate trim tool under the A-pillar corner trim (A) near the upper clip. Carefully pry up on the trim to release the clip. Take care not to scratch the body and related parts.

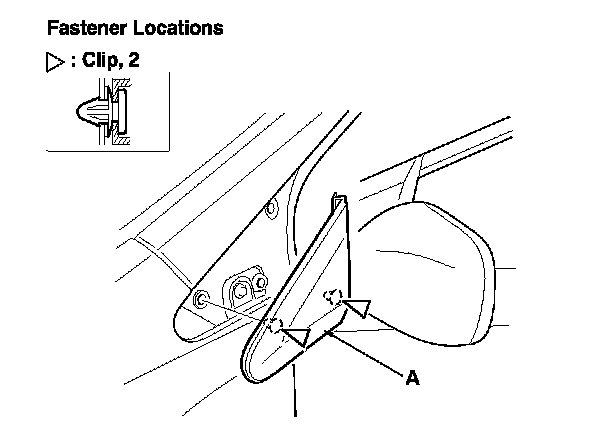

3. Pull the A-pillar corner trim (A) back by hand to detach remaining lower clips, then remove the trim.

4. Install the trim in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clip portions into place securely.
