Drivers Dashboard Undercover Removal/Installation

Driver's Dashboard Undercover Removal/Installation

For Some Models

NOTE: Take care not to scratch the dashboard and related parts.

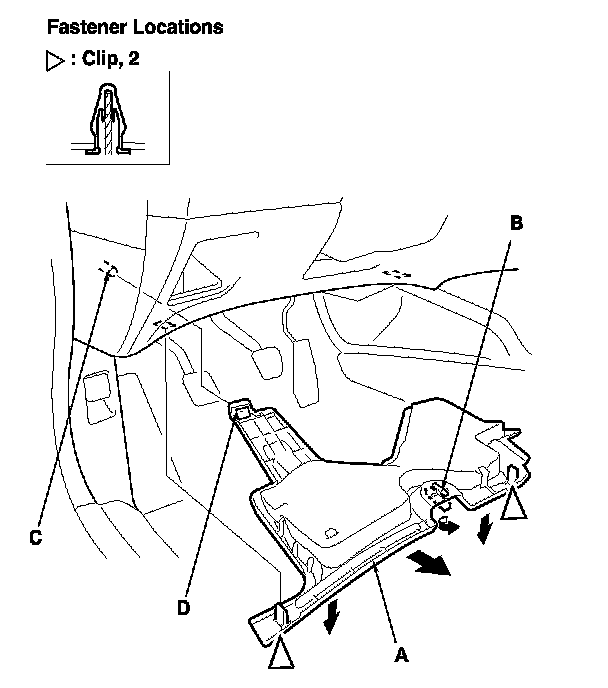

1. Remove the driver's dashboard undercover (A).
-1 Turn the lock knob (B) 90 °.
-2 Gently pull down the rear edge to detach the clips.
-3 Pull the cover away to release the pin (C) from the holder (D).

2. Install the cover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clips into place securely.
