Dashboard Side Trim Removal/Installation (4-Door)

Dashboard Side Trim Removal/Installation

4-door

NOTE: Take care not to scratch the dashboard and related parts.

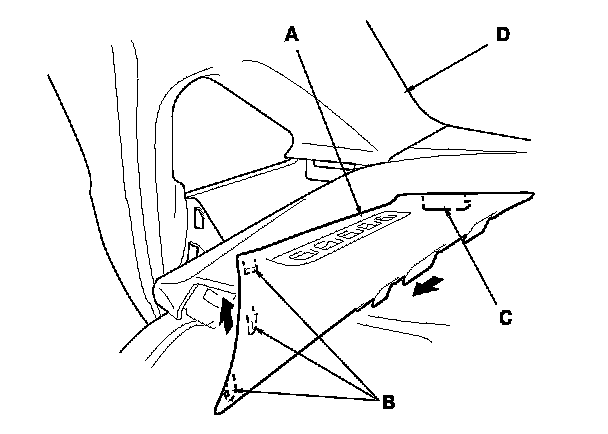

1. Remove the dashboard side trim (A).
-1 Gently pull up the rear edge to release the rear hooks (B).
-2 Pull the trim away to release the front hook (C) from the A-pillar trim (D).

2. Install the side trim in the reverse order of removal.
