Center Console Armrest Replacement

Center Console Armrest Replacement

For Some Models

NOTE: Take care not to scratch the armrest, the center console, and related parts.

1. Remove the center console. Center Console Removal/Installation

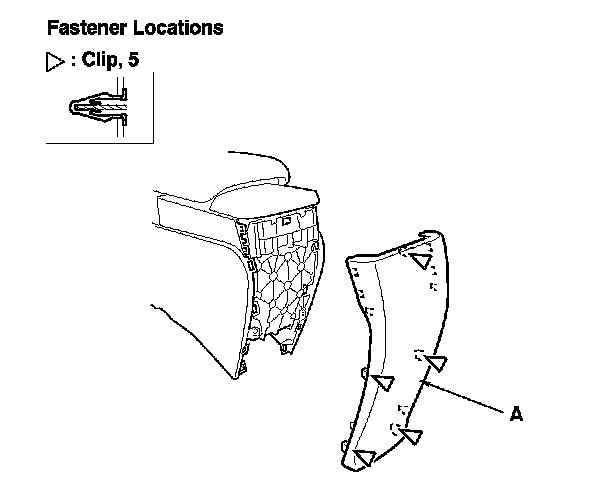

2. Gently pull out the center console rear cover (A) to detach the clips.

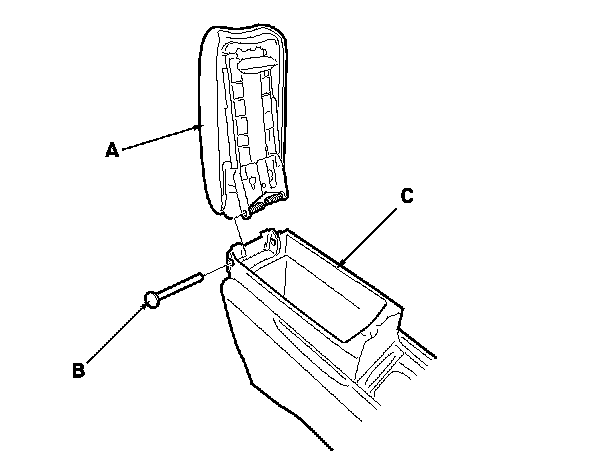

3. Open the armrest (A), pull the pin (B) off the armrest, then separate the armrest and the center console (C).

4. Install the center console armrest in the reverse order of removal. If the clips are damaged or stress-whitened, replace them with new ones.
