Overhaul

Center Console Disassembly/Reassembly

Special Tools Required

- KTC trim tool set SOJATP2014*

NOTE:

- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

- Take care not to scratch the center console, the dashboard, and related parts.

1. Remove the center console. Center Console Removal/Installation

2. If equipped, remove the center console armrest. Center Console Armrest Replacement

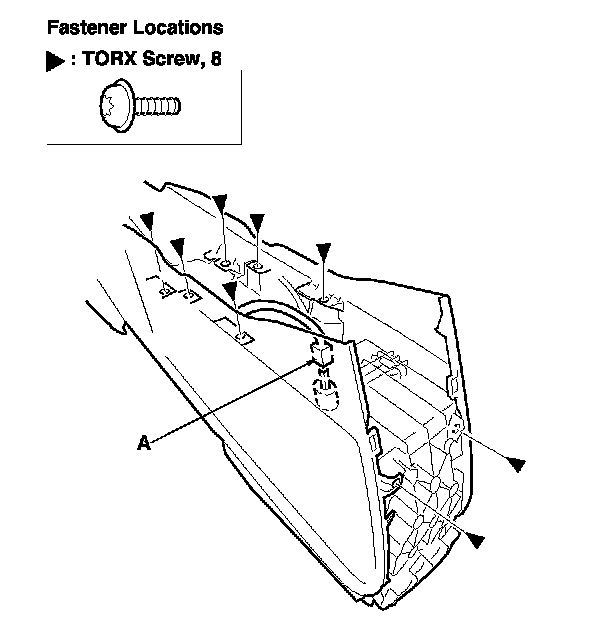

3. Remove the screws using a TORX T20 bit, and disconnect the accessory socket connector (A).

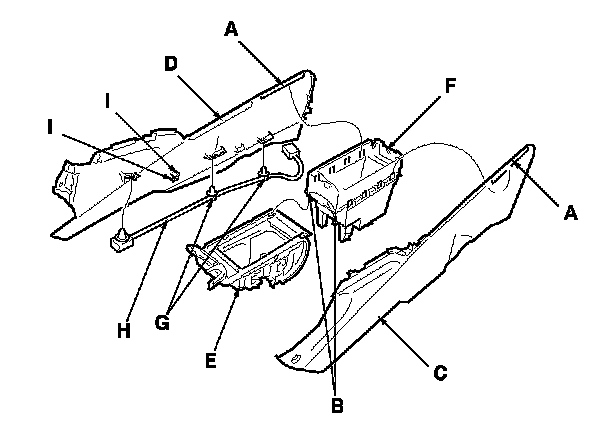

4. Release the hooks (A) and the pins (B), then separate the left console side panel (C), the right console side panel (D), the console beverage holder (E) and the console box (F). If equipped, detach the harness clips (G), then remove the console subharness (H) from the hooks (I). 4-door is shown; 2-door is similar.

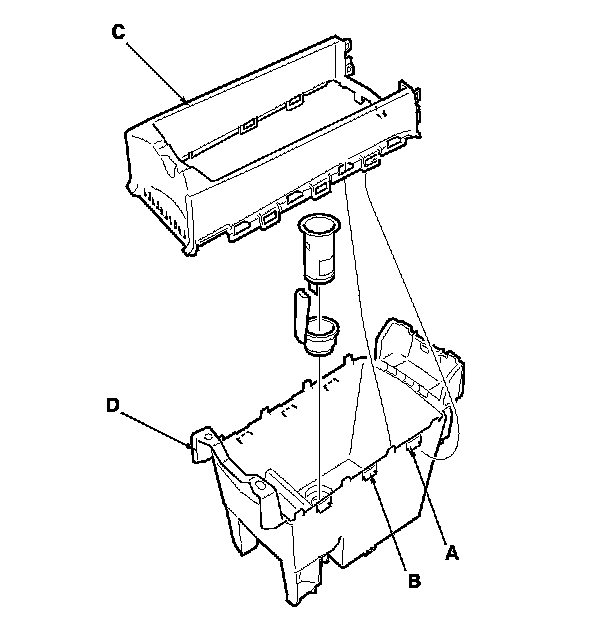

5. Release the hooks (A, B), then separate the console upper box (C) and the console lower box (D).

6. Assemble the console in the reverse order of disassembly, and make sure the console subharness connector is plugged in properly.
